Description

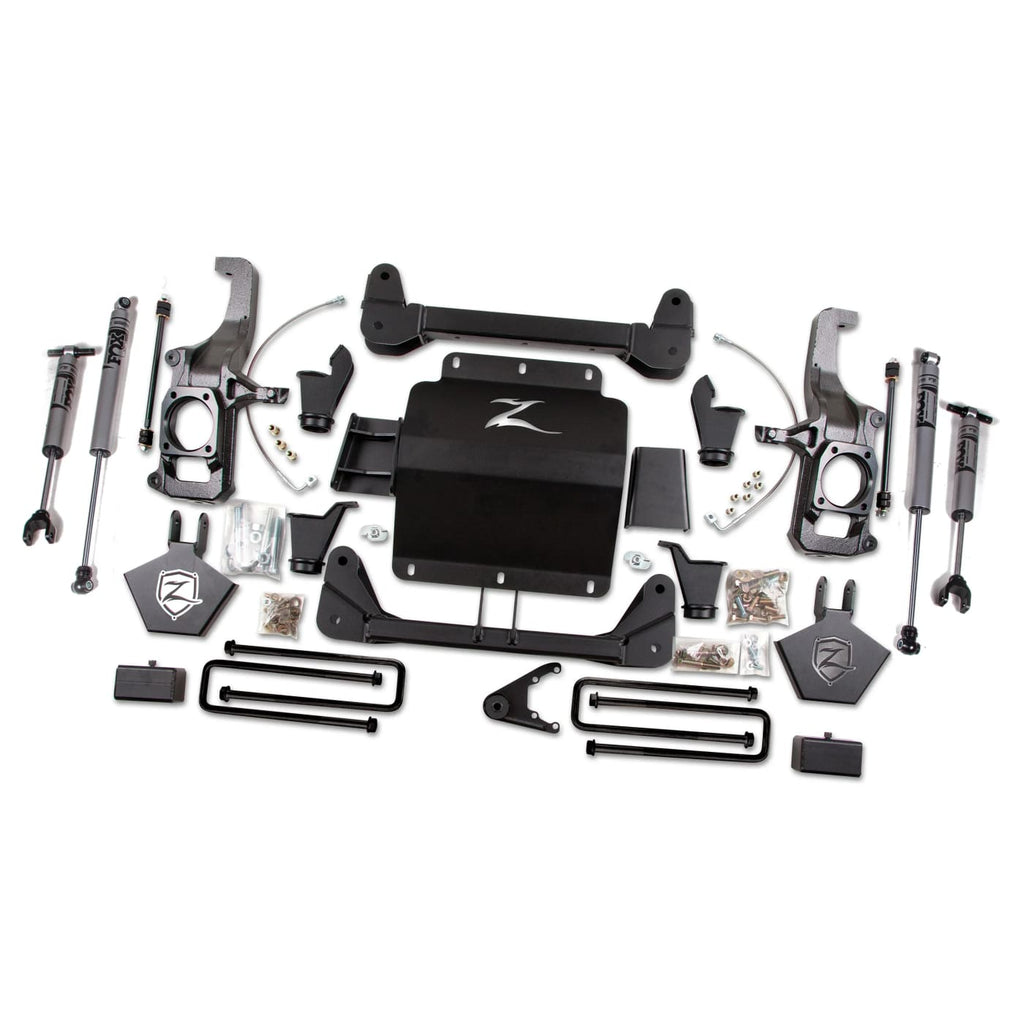

The Zone Offroad 5" Suspension Lift Kit come complete with everything you need to install on the 2011-2019 GM Silverado/Sierra providing a significant increase in ground clearance with the ability to fit up to a 37" tire. These lift kits feature the Fox adventure series shock absorbers with high quality components that have a durable black powder coat finish.
FITMENT NOTES
- 2015-2018 Models Only: 20" wheels can not be reinstalled due to GM changing the wheel thickness. The ID of the 20" wheels are smaller on 2015-2018 models.
- WILL fit RWD models, however the front differential related parts in kit will not be used.
- Frame bracket modifications required for installation.
- Modifications required for installation. See installation instructions for more information.
- Optional steering stabilizer (PN# 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
- Stock 17" or 18" Wheels cannot be re-installed. Stock 20" wheels cannot be reinstalled on 2015-2018 models.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
- With a 20" Wheel, 5"-6" backspacing is recommended.
- In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front drive-line vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.
FEATURES & BENEFITS
- Heavy-duty differential skid slate improves off-road protection.
- High-strength, 1/4" steel construction crossmembers corrects lower control arm geometry.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- No differential trimming required.
- Rear lift block and longer U-bolts for easy installation and level stance.
