Description

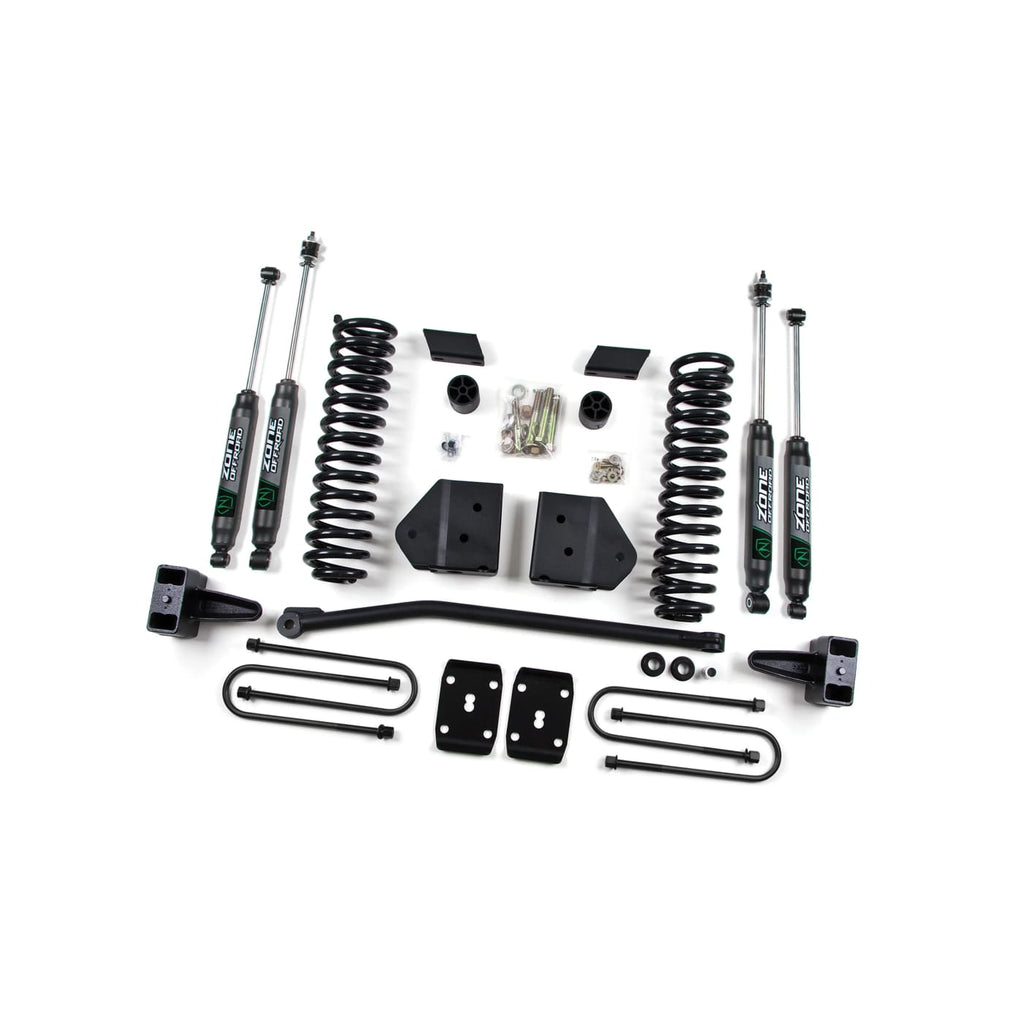

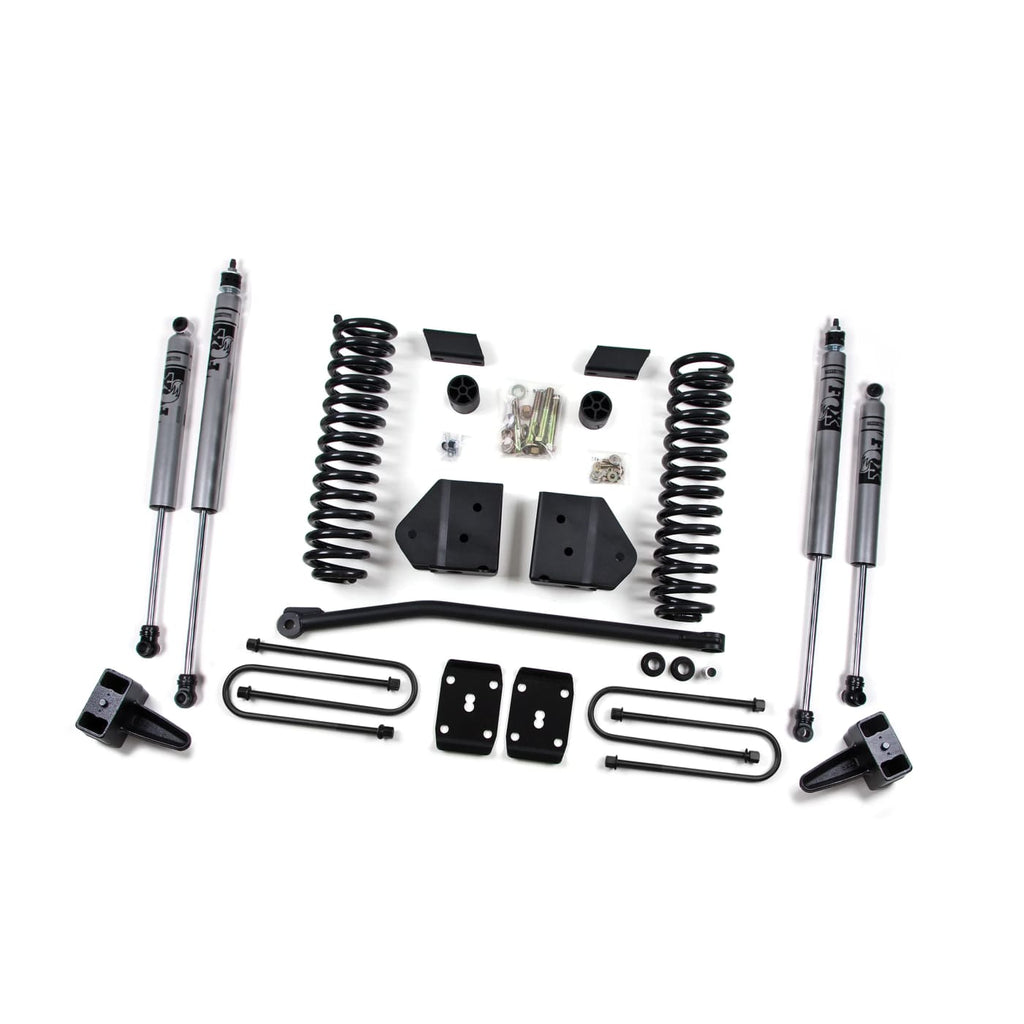

The Zone Offroad 4" Suspension Kit comes complete with everything you need for a simple bolt on installation to increase ride clearance with the ability to clear up to a 35" tire. This kit features heavy duty steel components with a durable black powder coat finish.
FITMENT NOTES
- Check Your Rear Springs: If your vehicle is equipped with both a stock 4" rear block and a top mounted overload/helper spring, select the longer 18.5" Rear U-Bolts.
- Factory wheels fit when paired with factory / original equipment tire size.
- Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
FEATURES & BENEFITS
- Full length replacement coil springs add additional ride height while maintaining ride quality.
- Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
- Larger rear lift blocks and longer U-bolts replace the factory hardware for an easy install and level stance.
- Radius arm drop brackets correction position front axle allowing use of the factory radius arms.
- Fits The 2008-2010 Ford F250-F350 Powerstroke 4X4
