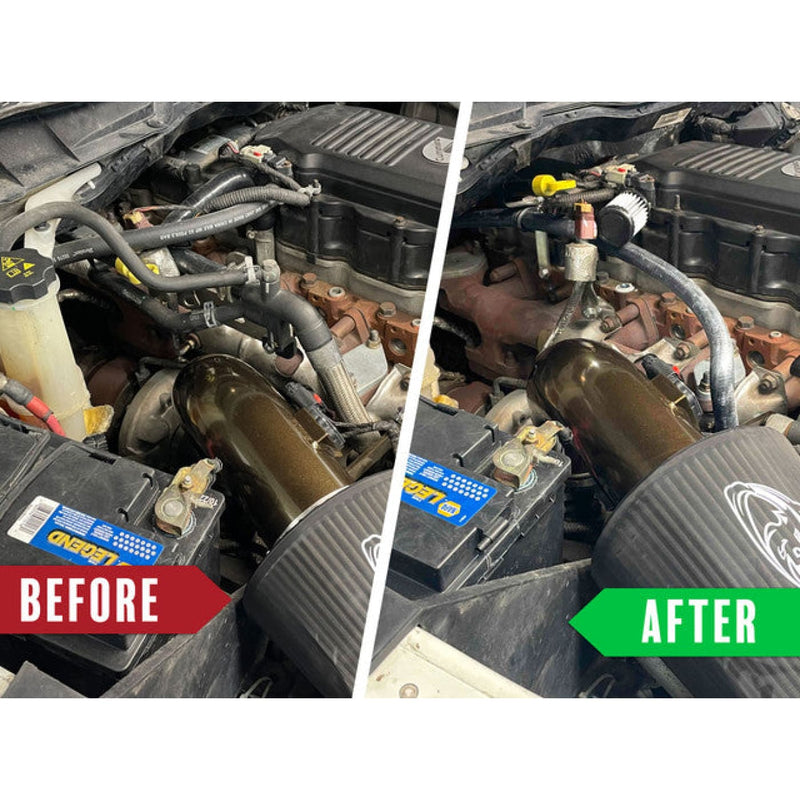

This coolant reroute kit is designed to increase coolant flow to the rear cylinders and 'clean up' the exhaust side of the engine. This simple setup addresses the unnecessary clutter on the exhaust side of your engine, increases coolant flow to the back of the cylinder head, and eliminates the failure-prone flex joint in the factory coolant riser (a common source of leaking coolant). This is also a must have for aftermarket turbocharger configurations that may need more room than the factory layout.

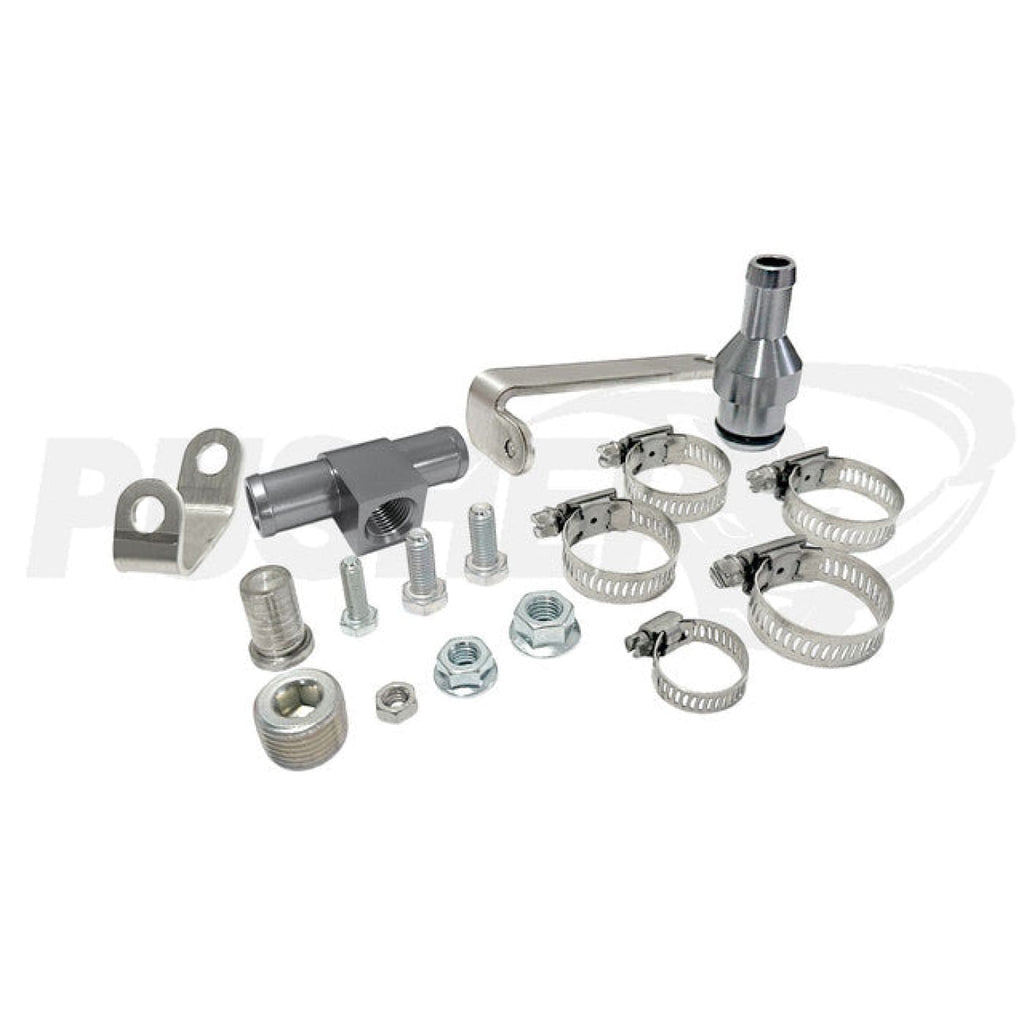

Individual Part Overview
- The coolant riser adapter and tee fittings are precision CNC-machined from high-quality 6061 aluminum and anodized for enhanced corrosion resistance.
- The individual drive pressure and transmission dipstick brackets are CNC laser cut and precision-formed from brushed 304 stainless steel for durability and a refined finish.

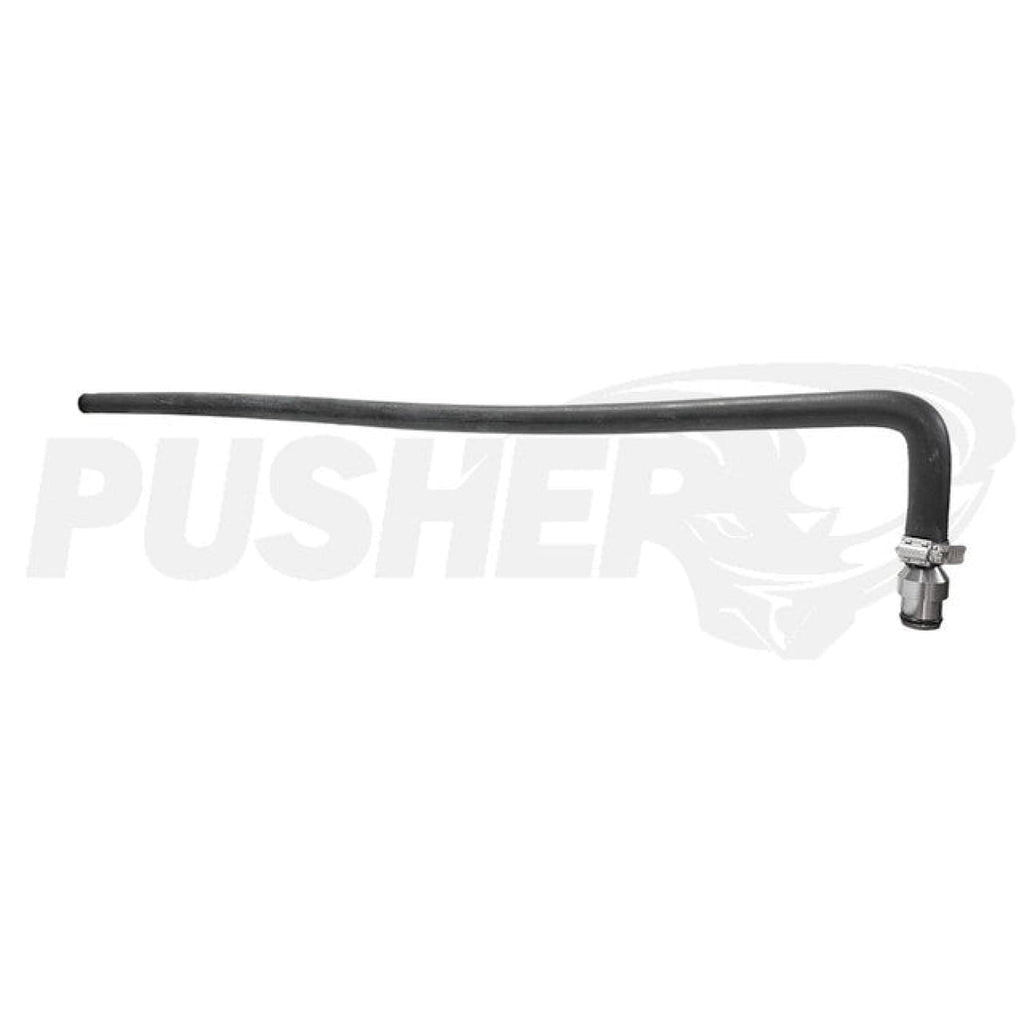

- Pre-formed coolant return hose.
- Miscellaneous hardware and seals.
This kit secures the following components while making room for other turbo configurations:
- Coolant riser tube
- Transmission dipstick tube
- Drive pressure sensor
- CCV routing (optional)
- Developed and tested for over 2.5 years with the Pusher High Mount Compound System
- Coolant riser adapter connection proven to hold over 90PSI of coolant pressure
- Proven double digit drop in coolant temps. Results vary by application and use conditions

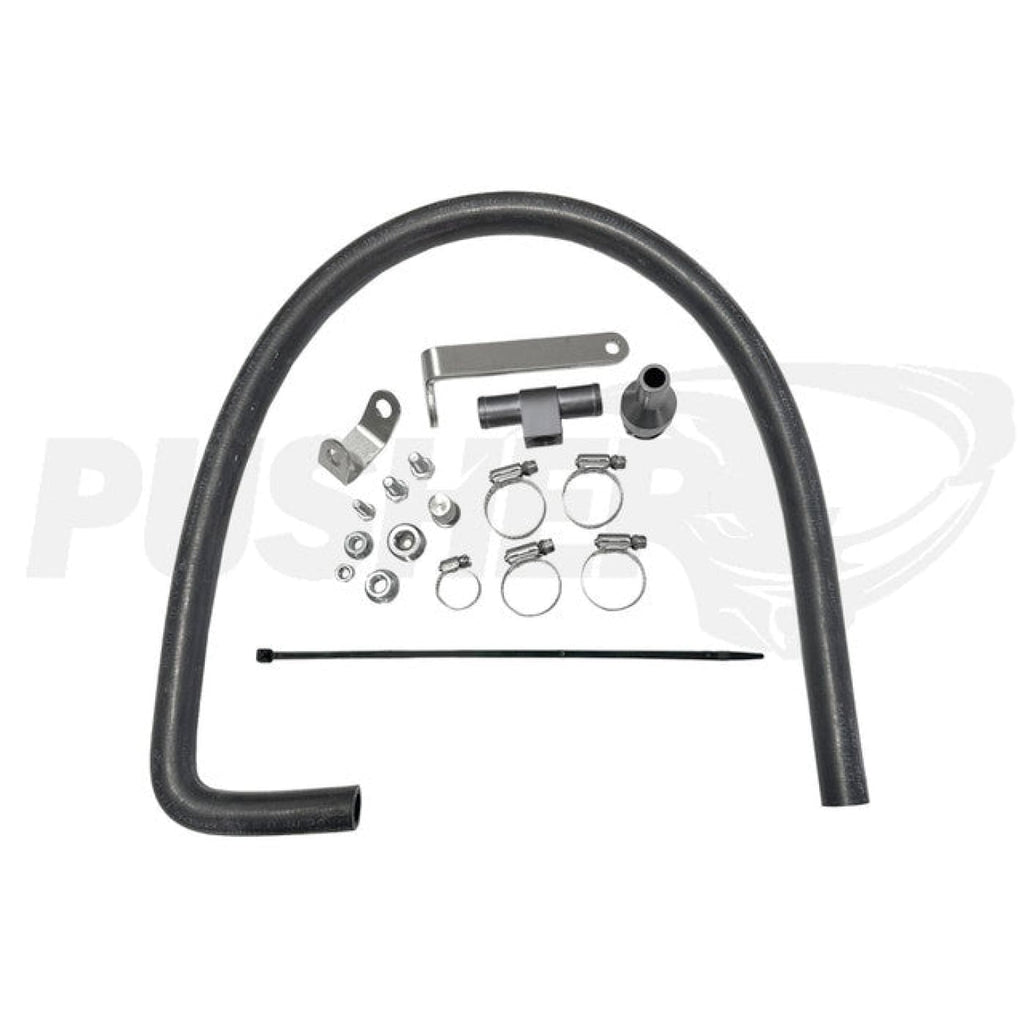

Whats Included
(1) DC0712CRA | Coolant Riser Adapter
(1) RC19XXCRT | Coolant Return Tee
(1) PDC0718TDSB | Transmission Dipstick Tube Bracket
(1) PRC1318DPSB | Driver Pressure Sensor Bracket
(1) Preformed Coolant Hose
(1) CRA O-Ring
(1) ½” Hose Clamp
(4) 1” Hose Clamp
(1) M4x.7x5mm SS Button Head Bolt
(1) M6x1x20mm Bolt
(1) M6x1 Nut
(2) M8x1.25x20mm Bolt
(1) M8 Serrated Flange Nut
(1) M10 Serrated Flange Nut
(1) ½” NPT Port Plug
(1) ½” SS Hose Plug
(1) Ziptie
