Description

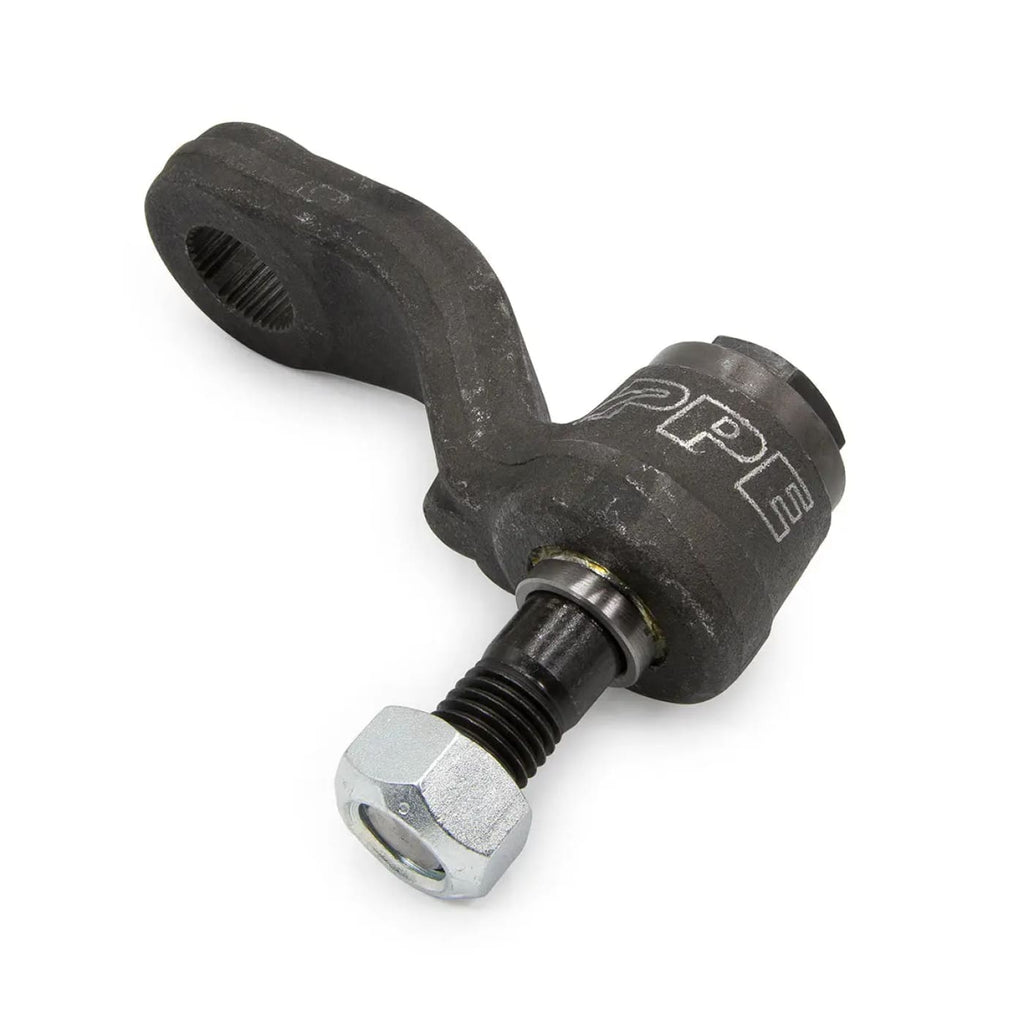

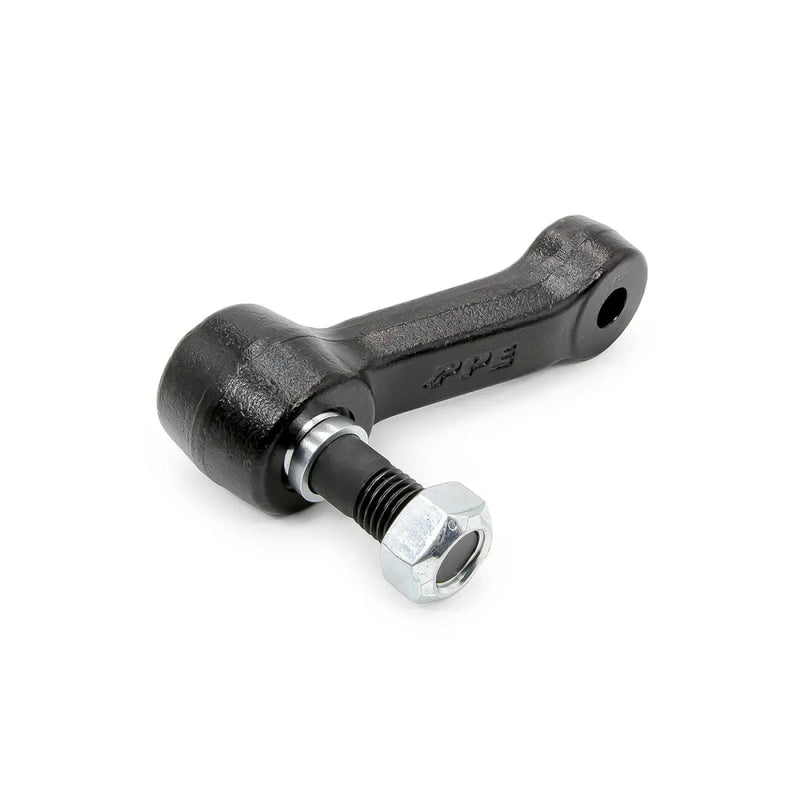

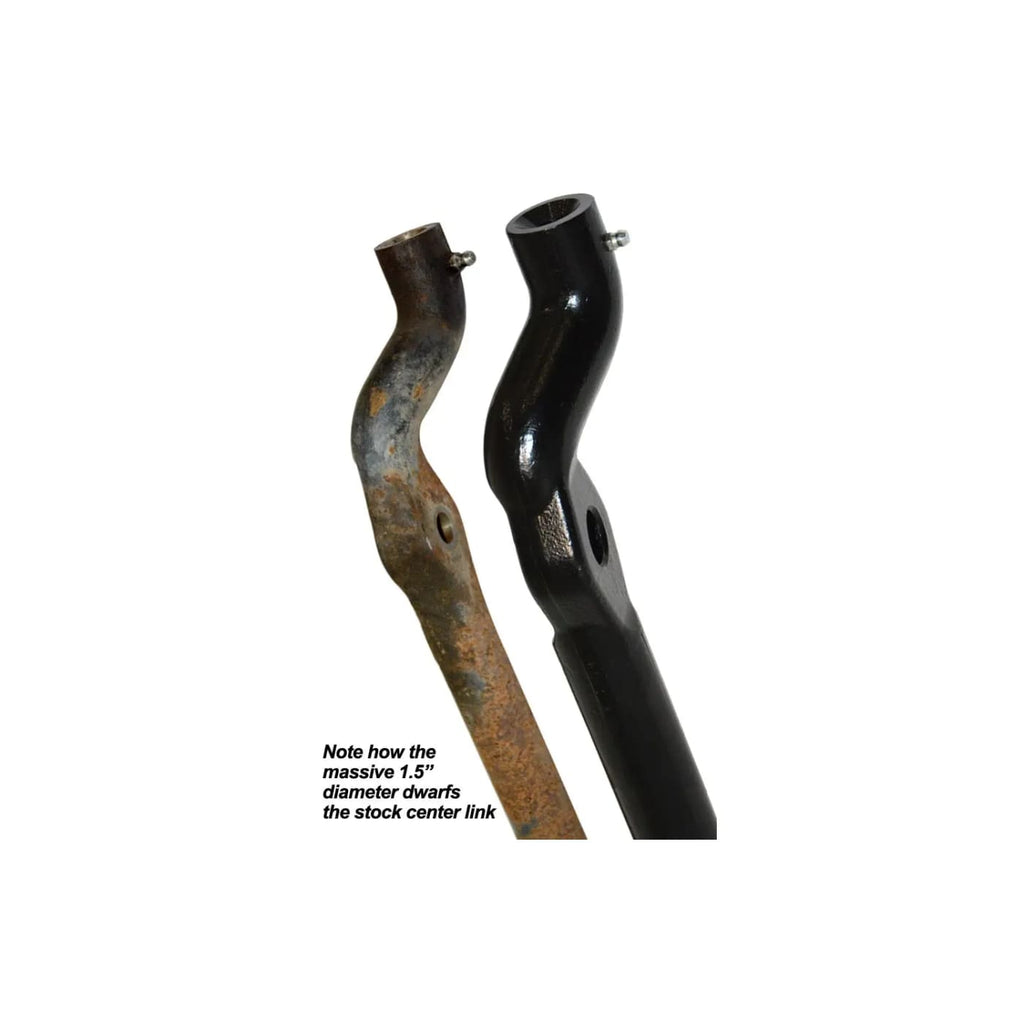

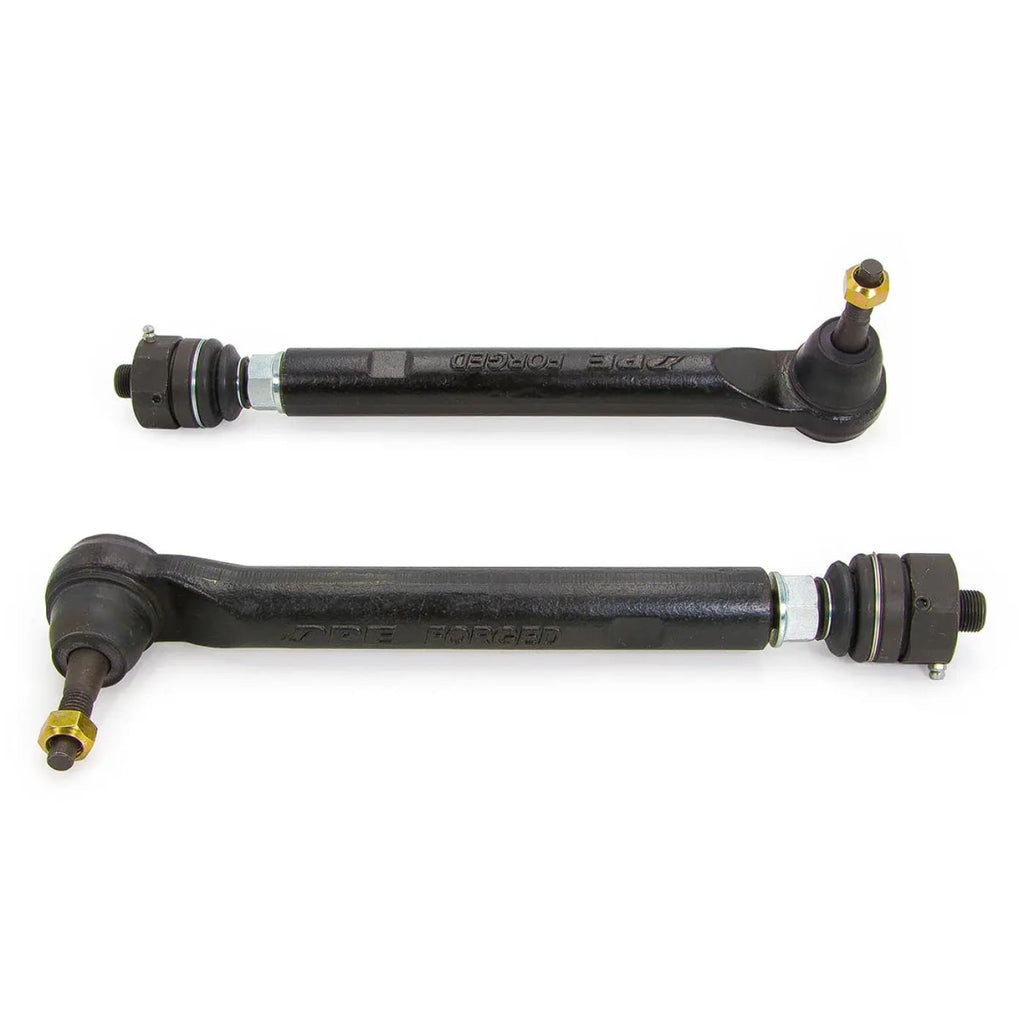

This Extreme-Duty Steering Kit comes complete with everything you need to upgrade your 2001-2023 GM factory 2500/3500HD components. The OE-Style (dog-leg) Center Link is forged steel and sports a massive 1.5” diameter with a 7/8” drill to accommodate the PPE Extreme-Duty Forged Pitman Arm and Extreme-Duty Forged Idler Arm, which both come with replaceable dual bearings. Also included in this extreme duty kit is a pair of Stage3 Forged Tie Rod Assemblies. These tie-rod assemblies are significantly stronger than the factory featuring 1.5” wide, forged tie rods, massive 2 1/3” ball joints, and a much larger and stronger, adjustable inner ball joint. PPE outer tie rod ends feature a spring-loaded gusher bearing that maintains constant pressure. This kit ensures long-lasting strength up front.
NOTICE: Do not exceed 500 PSI of pressure when applying grease will risk damage to grease caps causing tie rod failure and will result in voiding your warranty.

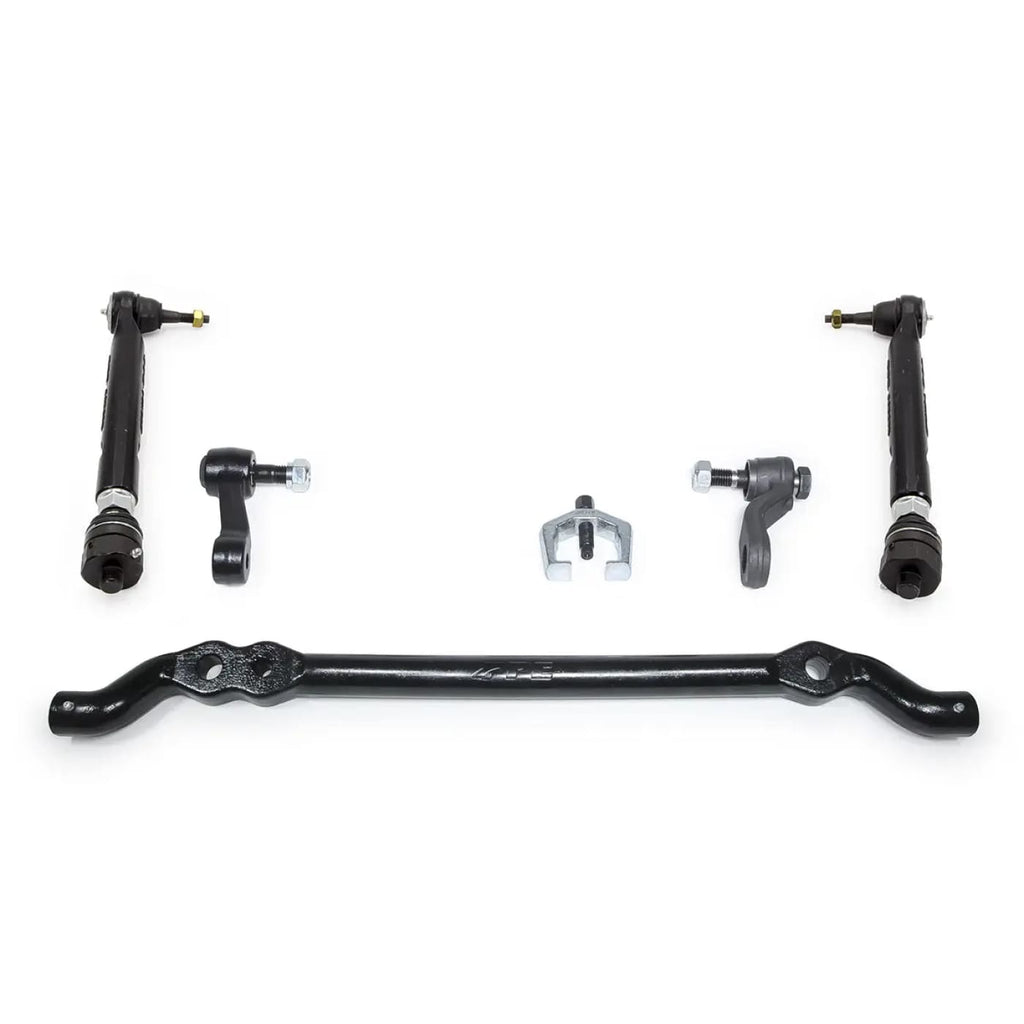

KIT INCLUDES
- Heavy Duty Inner & Outer Tie Rods
- Pitman & Idler Arm
- Center Link
- Pitman Arm Puller
FEATURES & BENEFITS
- Heavy Duty Steering Upgrade
- Complete Kit For Simple Installation
- Significantly Stronger Than Factory Parts
- Fits The 2001-2010 GM Silverado/Sierra 2500/3500HD
