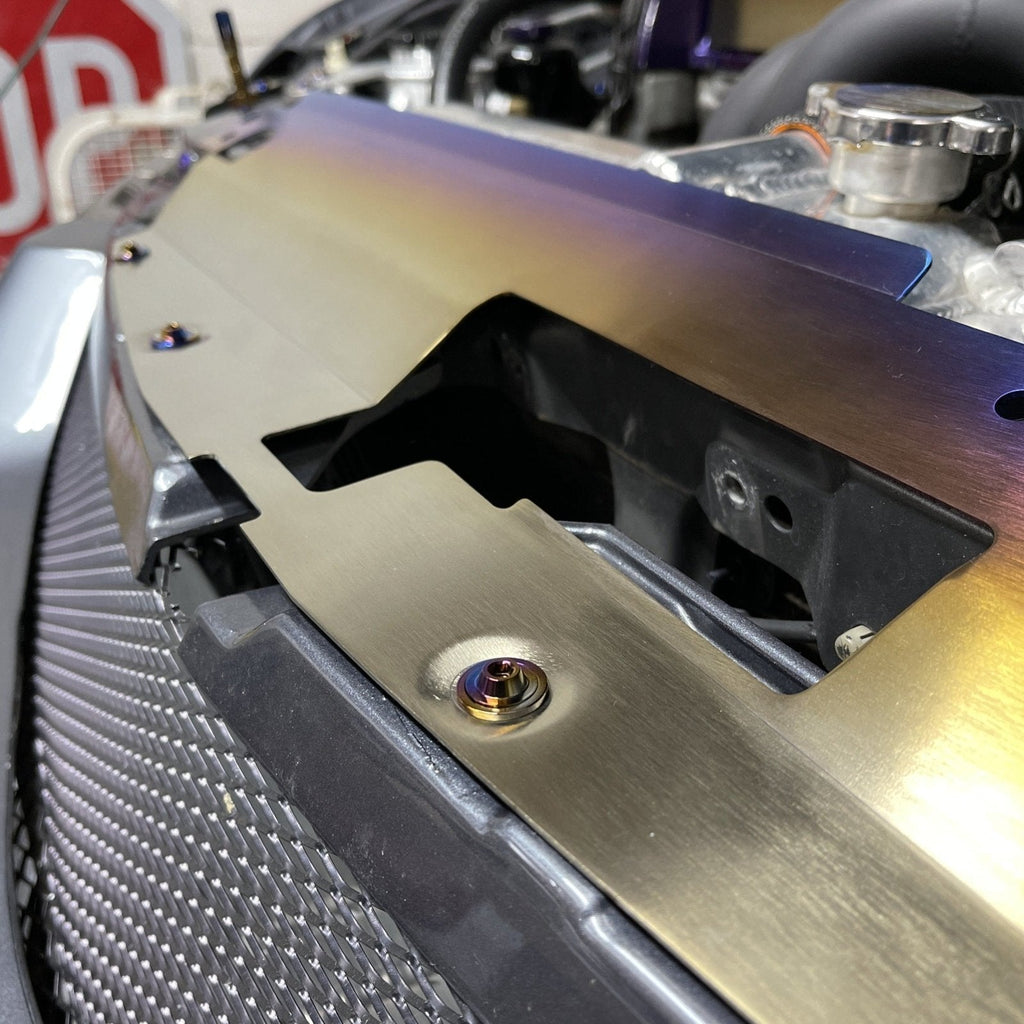

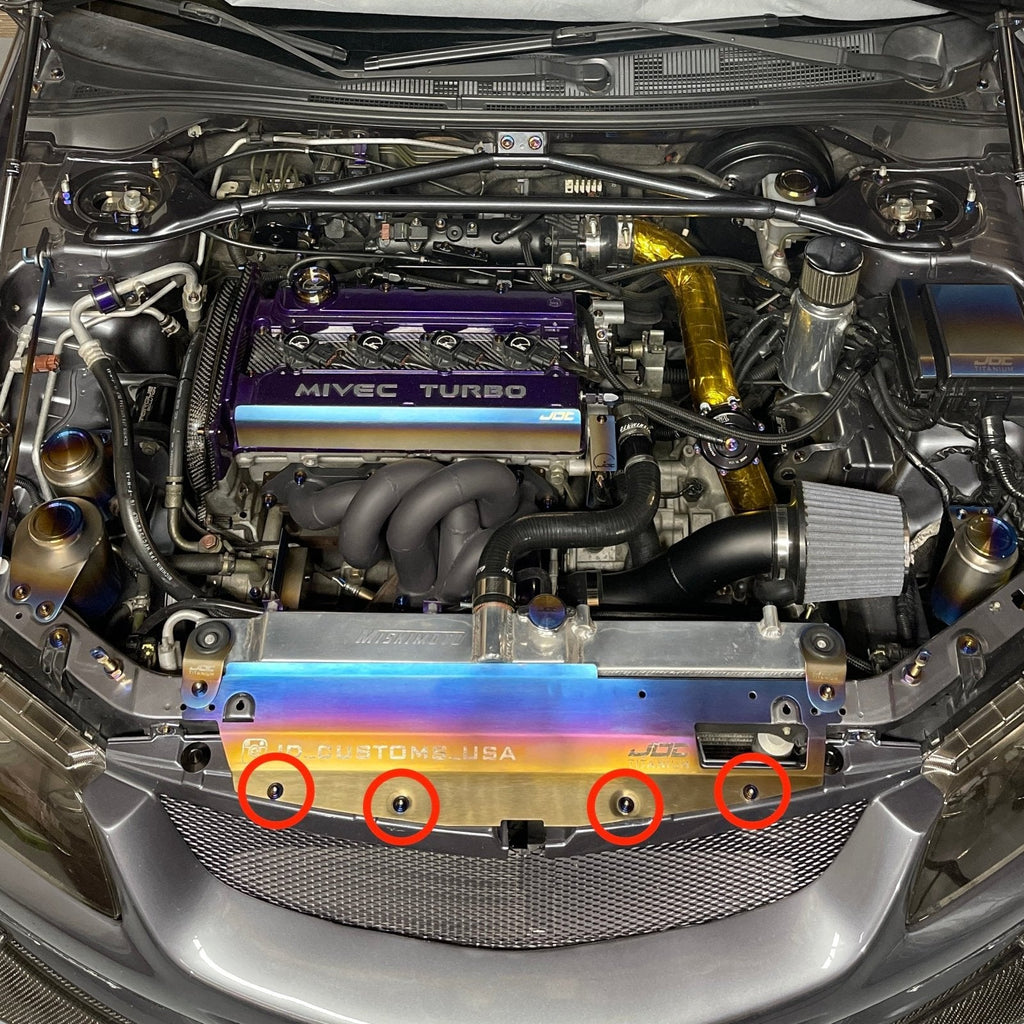

JDC Titanium Radiator Cooling Shroud Plastic Clip Replacement Kit
This kit replaces the plastic clips on the radiator cooling shroud area with titanium hardware! Each kit comes with the hardware needed to add threads to each hole and allows you to replace plastic clips with titanium bolts. Each titanium piece is hand polished before receiving our proprietary anodizing process, which gives it the long-lasting vibrant colors we're known for!
Applications:
- 03-06 Evo 8/9
- Works on most aftermarket cooling shrouds

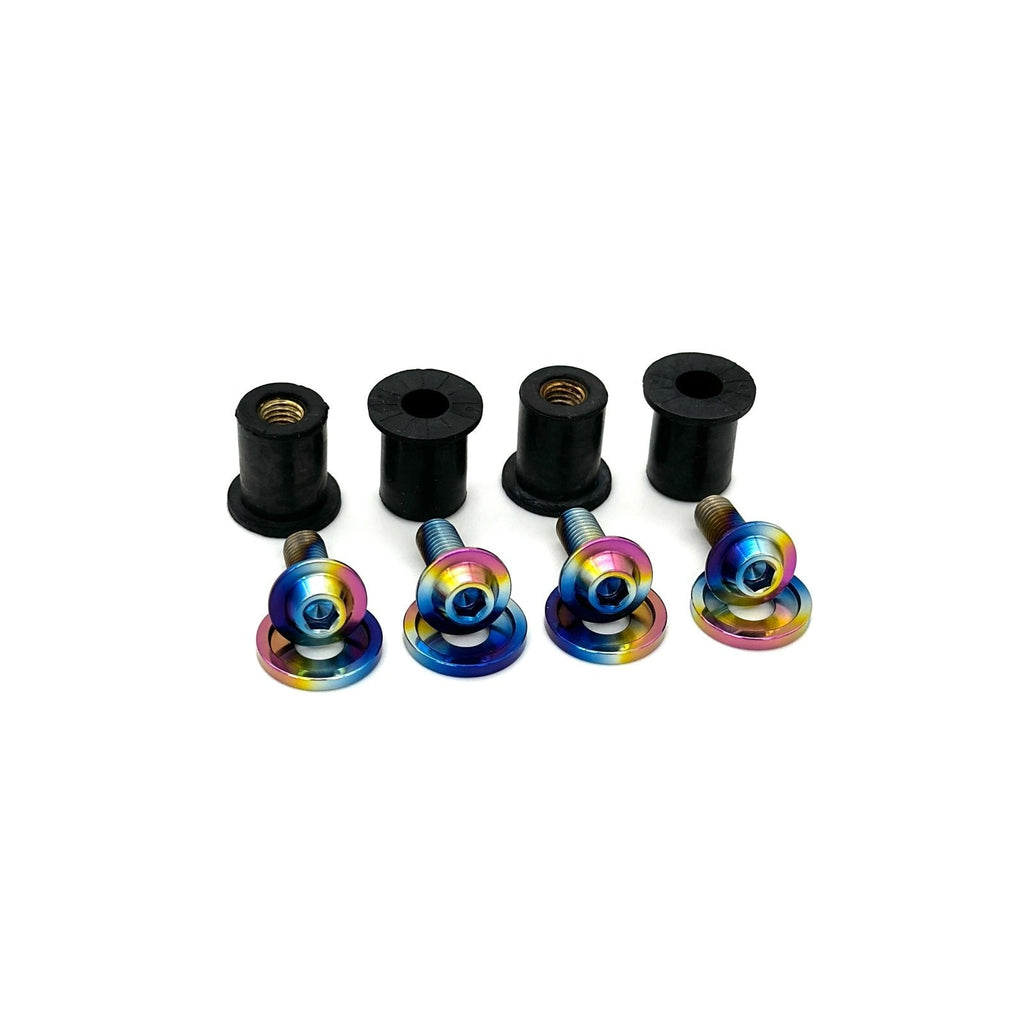

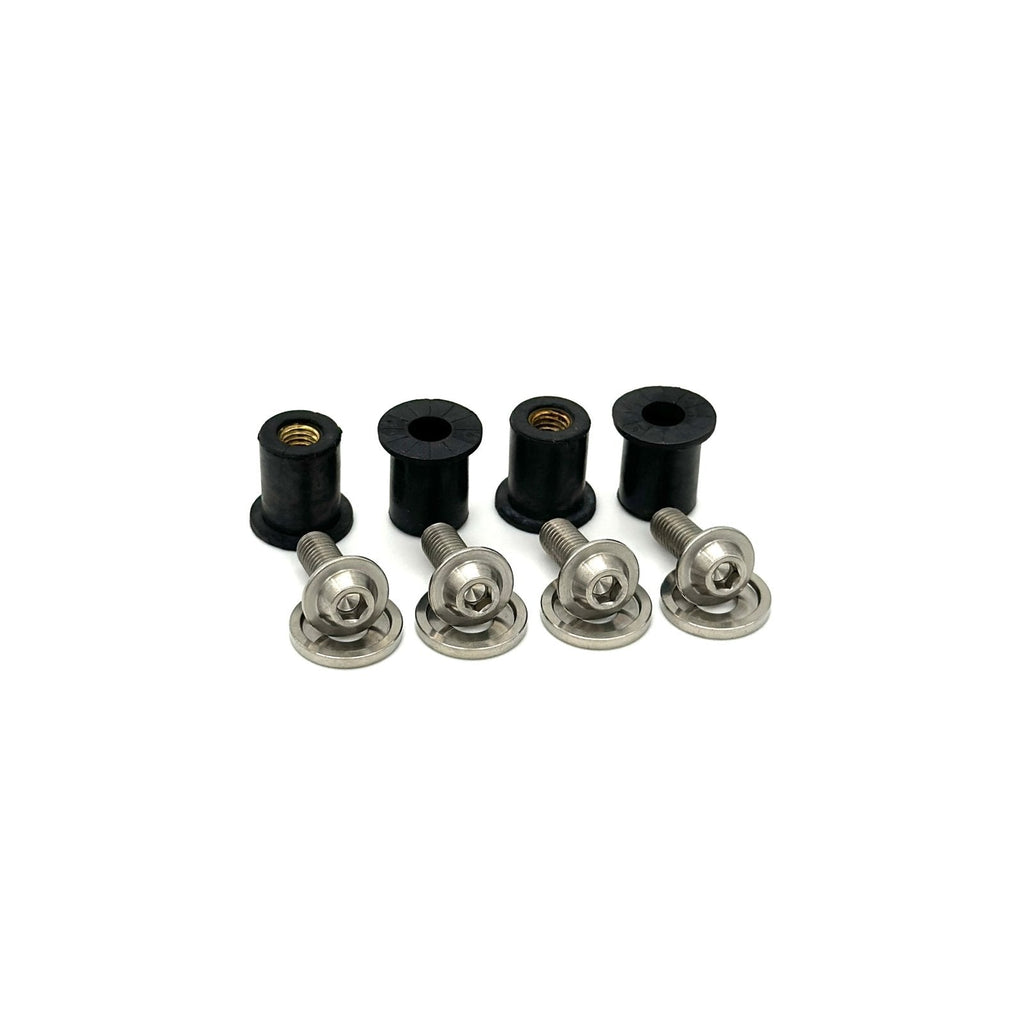

What's Included?

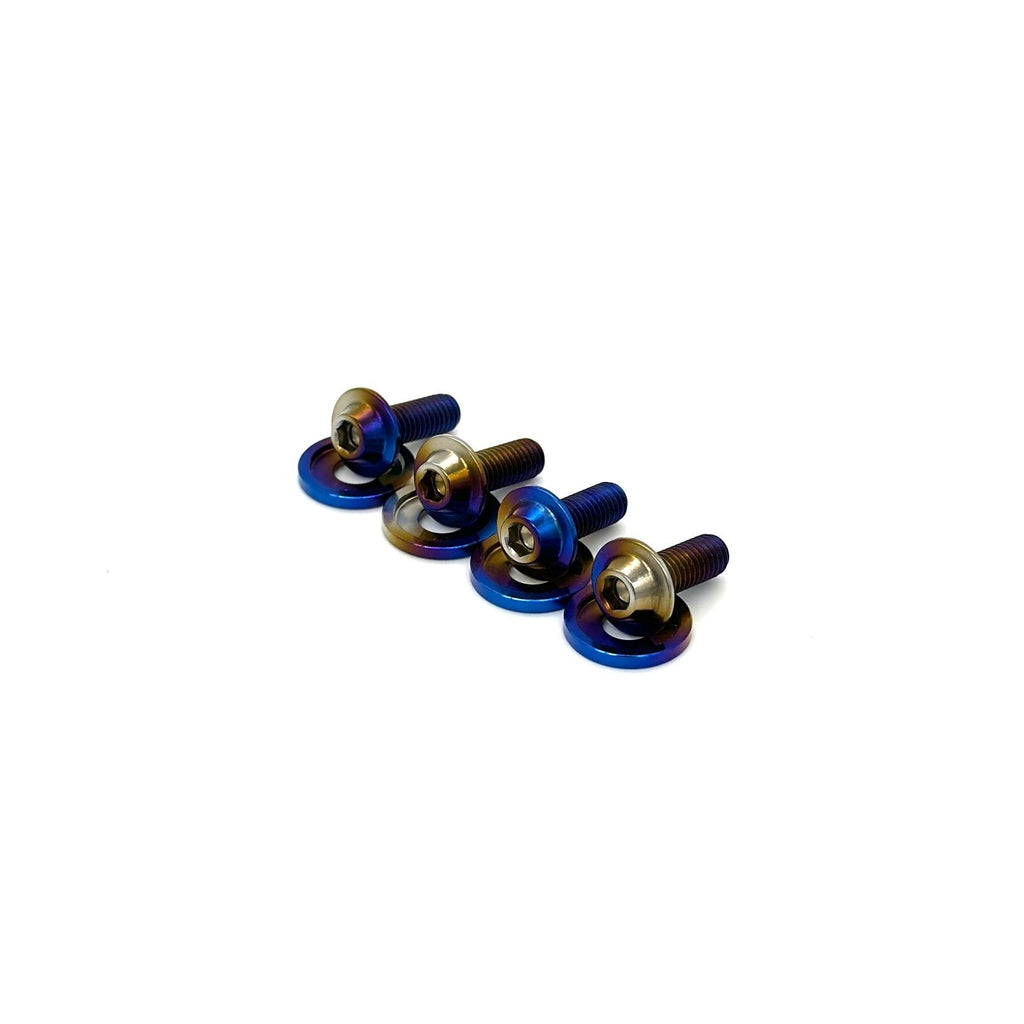

- (4) M6x17mm Bolts
- (4) M6 Custom Washers
- (4) Rubber Well Nuts
Installation:
- This kit requires each hole to be enlarged with a drill to fit a rubber well nut.
- Each hole needs to be enlarged with a drill bit to 1/2" so the well nut fits snugly. You can do this with a drill bit or a step bit. DO NOT drill the hole too big.
- Once the well nut is in place, simply screw the bolt with the washer in place with an Allen tool until the bolt begins to get hard to turn. Do not over-tighten.
Features:
- CNC Machined for a perfect fit and finish
- Made from solid Ti6Al-4V titanium

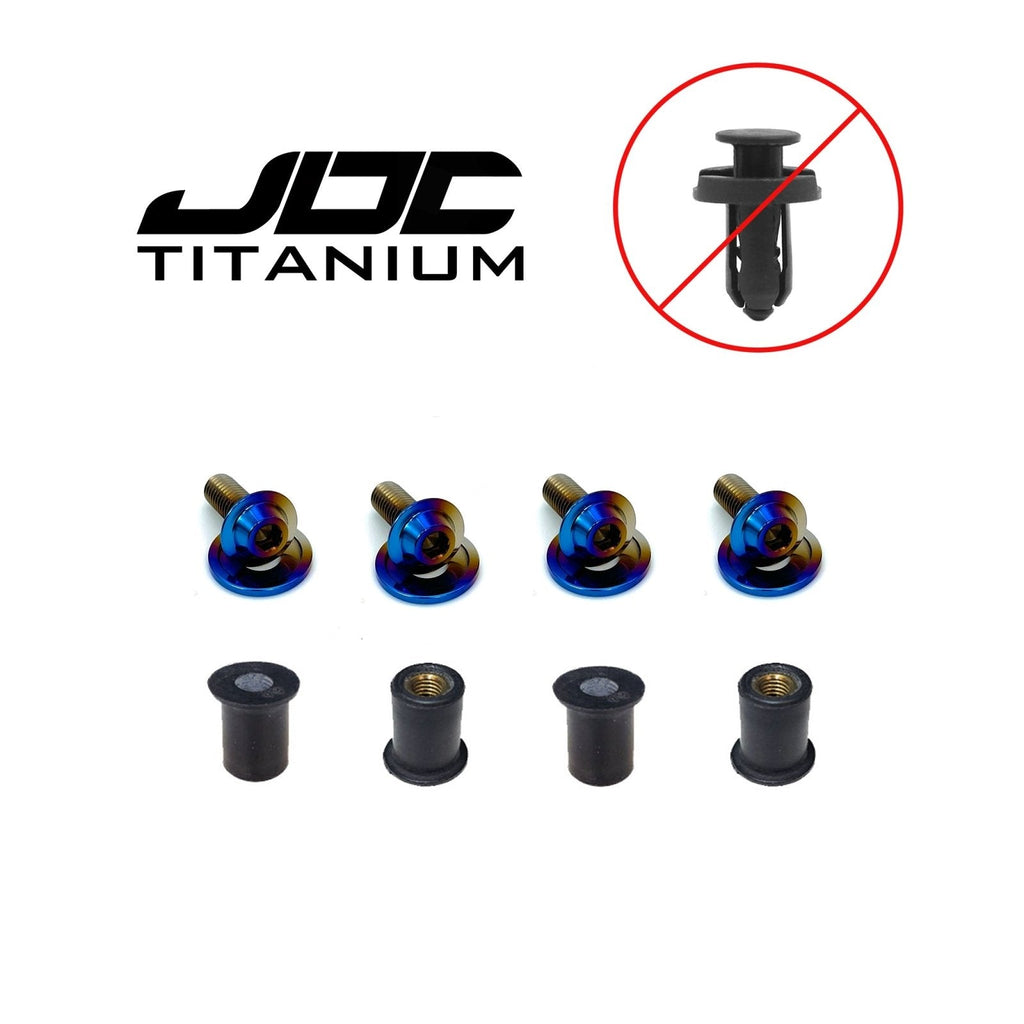

- Direct replacement for the factory plastic clips
About our titanium:
- CNC machined from a single piece of Ti6Al-4V (Grade 5) titanium.
- Each piece is polished before receiving our proprietary cold anodizing treatment for colors that will last a lifetime!

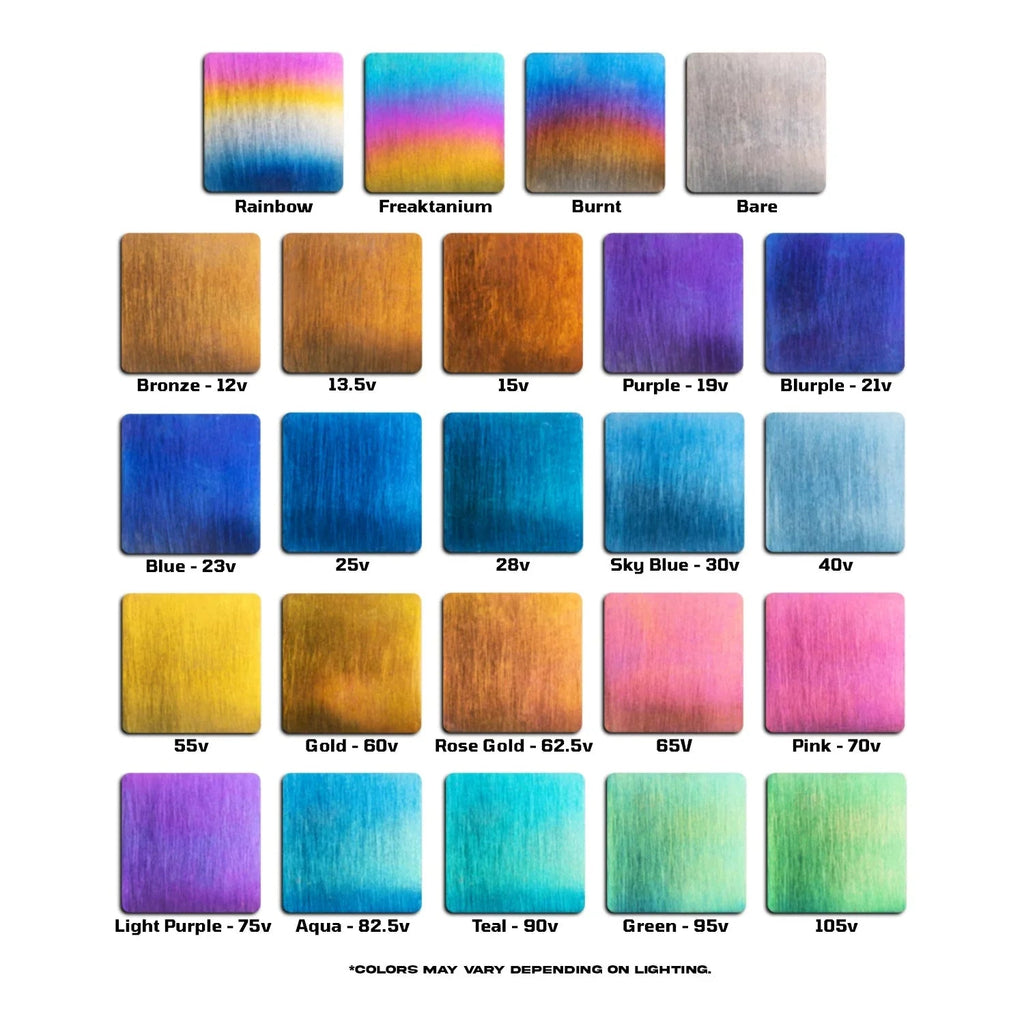

- For a color chart and information on our titanium products please click here.
Shipping Times:
-
All JDC titanium products are made to order unless otherwise stated on the item listing. Please see the red banner at the top of the website for the current estimated turnaround time. Production time can vary depending on your order size, products ordered, and the difficulty of custom options requested.
