Description

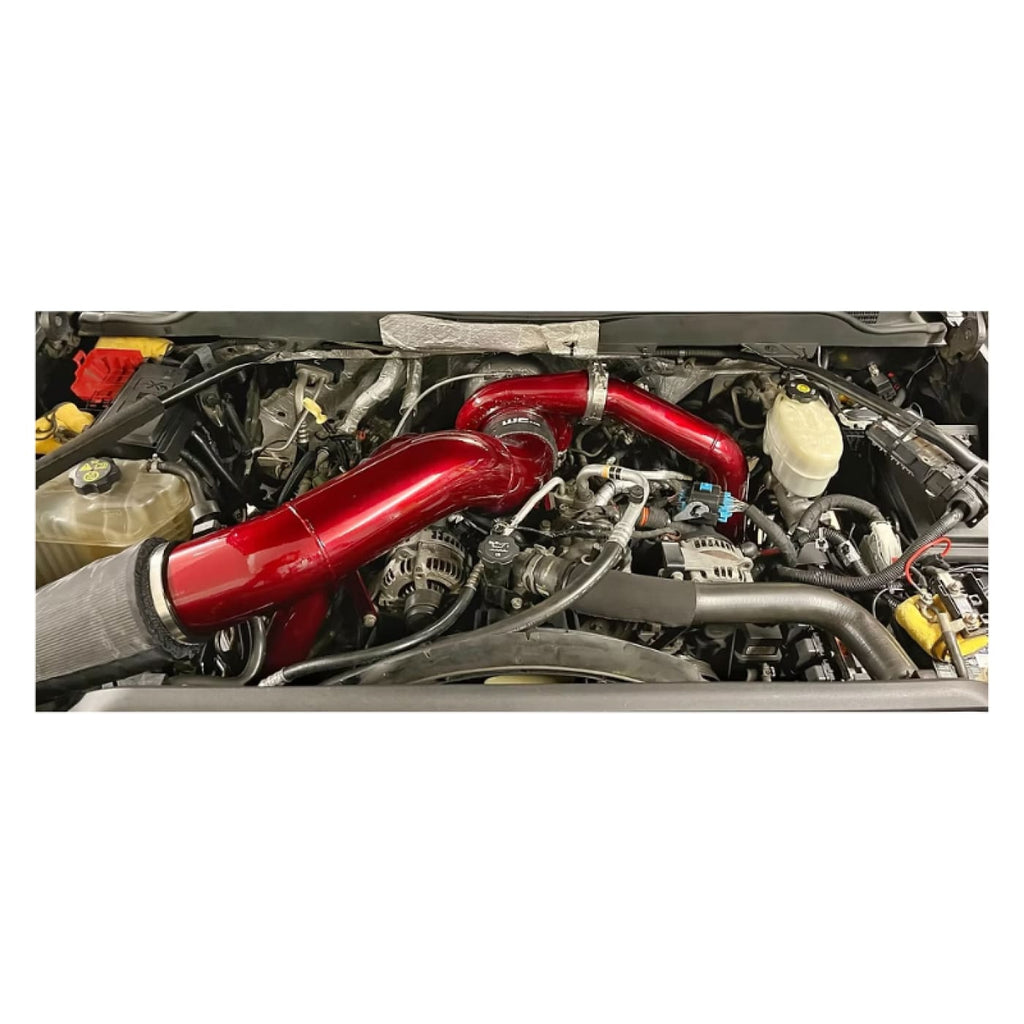

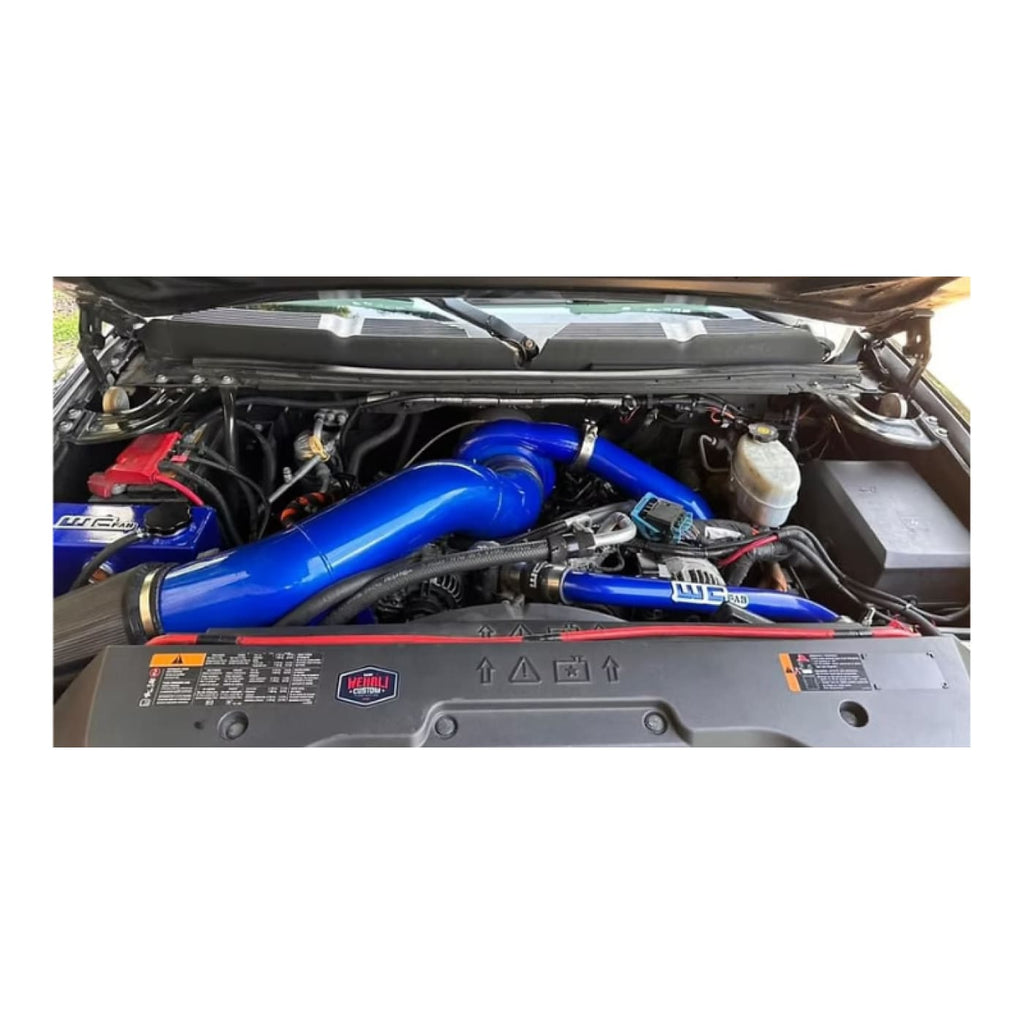

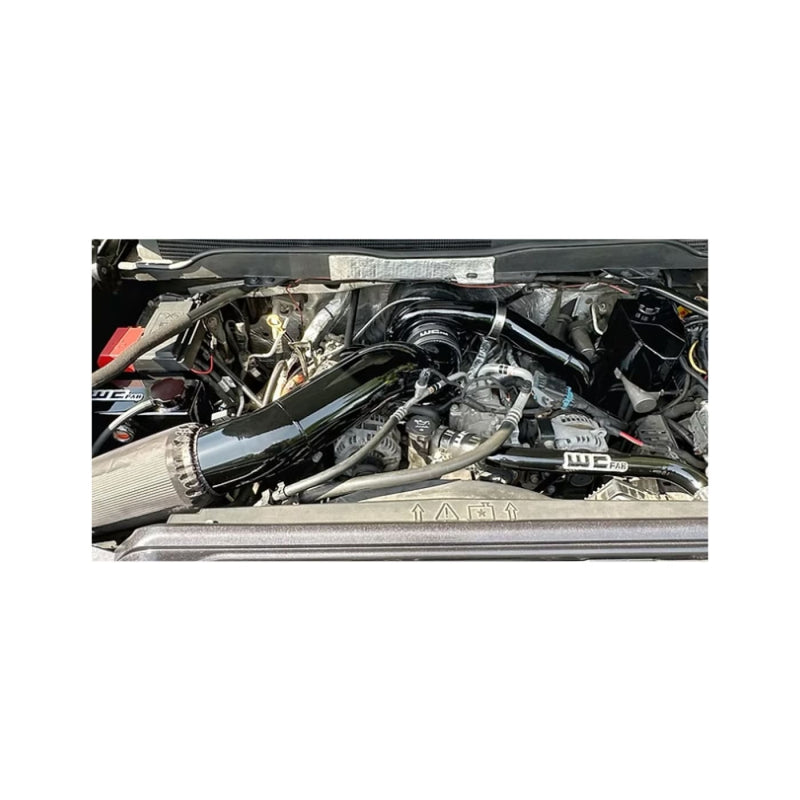

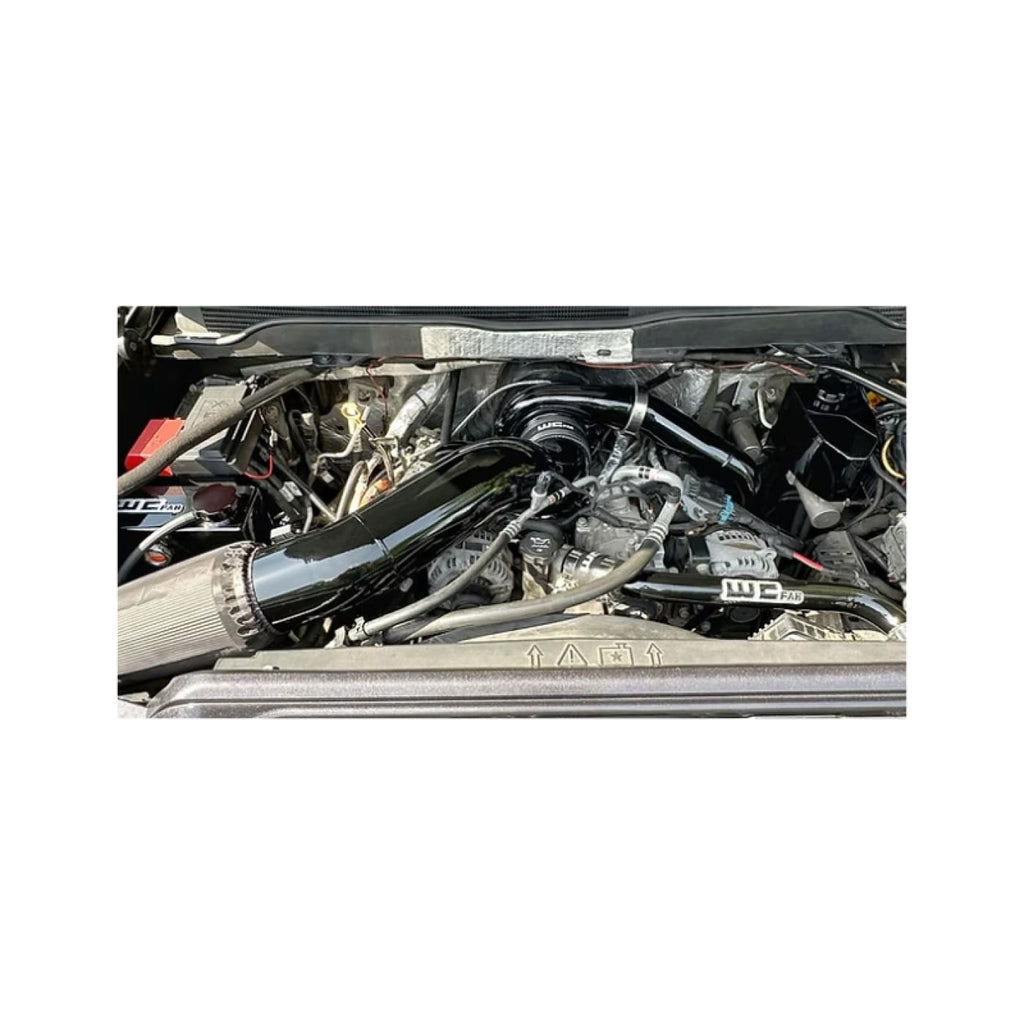

The JCG single turbo kits come complete with everything you need to replace the factory VGT turbocharger with the S400 of your choice. These kits offer a simple bolt on installation with no welding or fabrication required to install on the 2011-2016 Duramax.

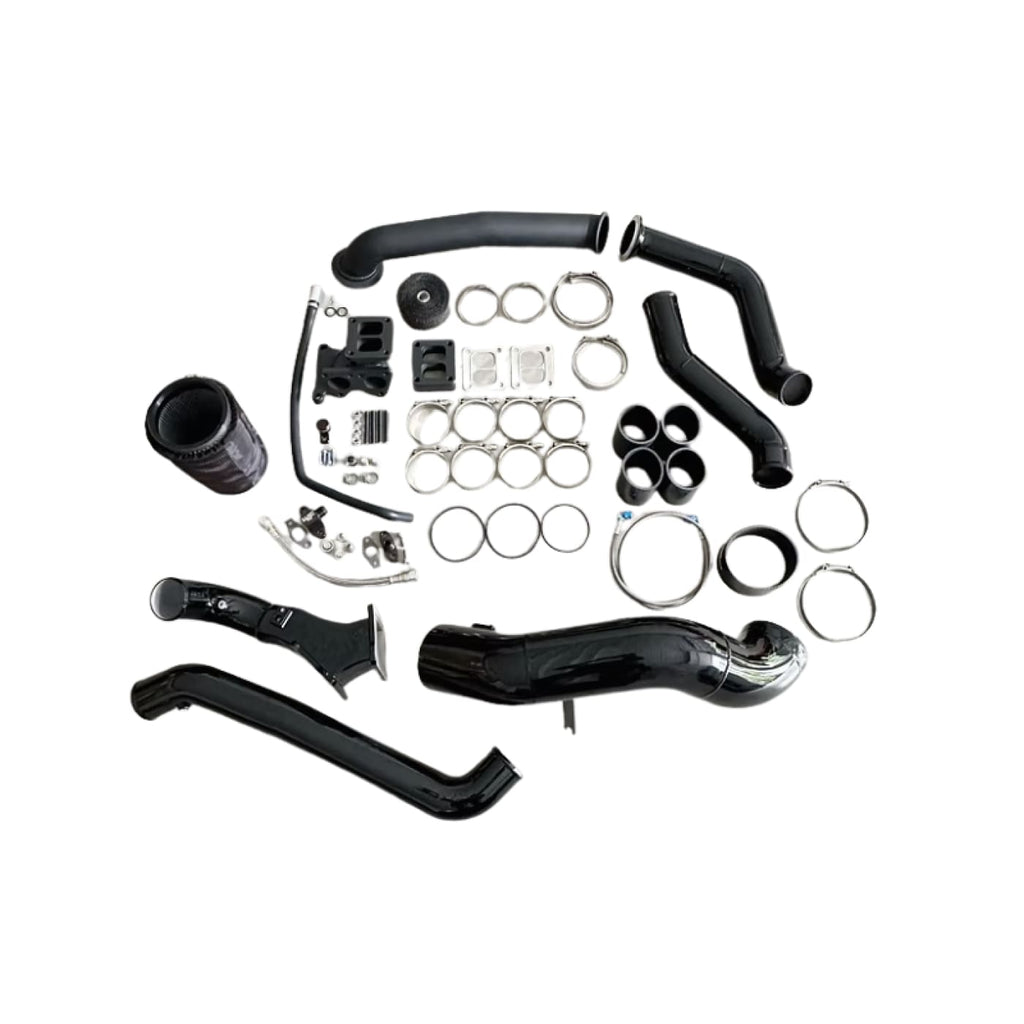

KIT INCLUDES
- S400 one piece 5" intake with dry air filter and outerwear cover
- T4 pedestal with spacer

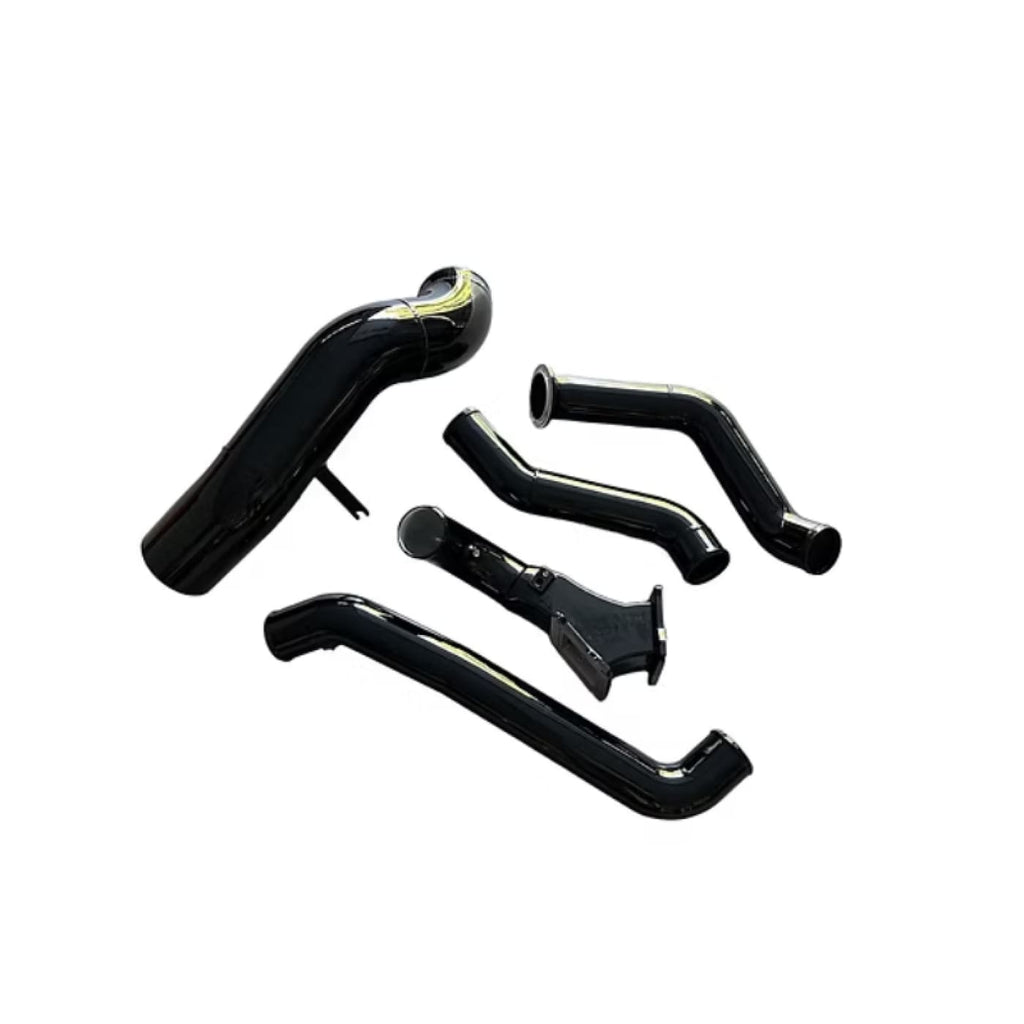

- Vband hot side intercooler pipes. Full 3" from turbo to intercooler. (Standard S400 cover required. Cannot use extended tip turbos)
- Vband downpipe with heat wrap. Flange at the turbo is 4.62" marmon.
- Full 3" Y bridge with cold side intercooler piping. Additional 1/8th NPT bung included for aftermarket boost gauge or methanol injection. A plug is included if you do not have either.
- All boots and clamps needed for installation
- S400 specific oil feed and return lines
- Any hardware needed for installation
The majority of color options are often in stock and ready to ship within the following business day, we will reach out to let you know if there is any additional lead time. Turbo's are coated to order and will add a 10-15 day lead time if this option is selected.
SUGGESTED TURBO SIZES
S463.5 (AKA S464) (63.5mm/83mm/.90 A/R T4) Stock fuel system 650-700HP
S467 (67.7mm/83mm/.90 A/R T4) Stock fueling or smaller fuel setup 800HP
S472 (72mm/83mm/.90 A/R T4) 50% - 150% Injectors and 10-14mm CP3 850+HP
IMPORTANT NOTE
2015.5-2016 LML Duramax's with the 3 bolt flange will need to cut the mounting ring off of the exhaust to add the optional clamp.
FEATURES & BENEFITS
- Improved Performance & Reliability
- Complete S400 Installation Kit
- No Welding Or Fab Work Required
- Custom Tuning Is Required
- Fits The 2011-2016 LML Duramax
