Description
This kit will allow you to install an S400 based Turbo on your 2010-2012 6.7 Cummins with an ATS or Steed Speed 2nd Gen Style Exhaust Manifold (Sold Separate). Kit includes all components needed to install turbo. We mount the manifold pointing up which allows for a quick and simple down pipe install- no cutting of your exhaust system required! Our down pipe connects to the v-band flange on the exhaust system front pipe just as your factory turbo/cast elbow did. No Bending of AC lines is required with this kit! Stainless steel oil feed (#6) and oil drain (#10) lines. OEM Coolant tank can be used. All tubing is TIG welded and mating flanges are CNC machined with O-ring seals where necessary for a boost-leak free setup.

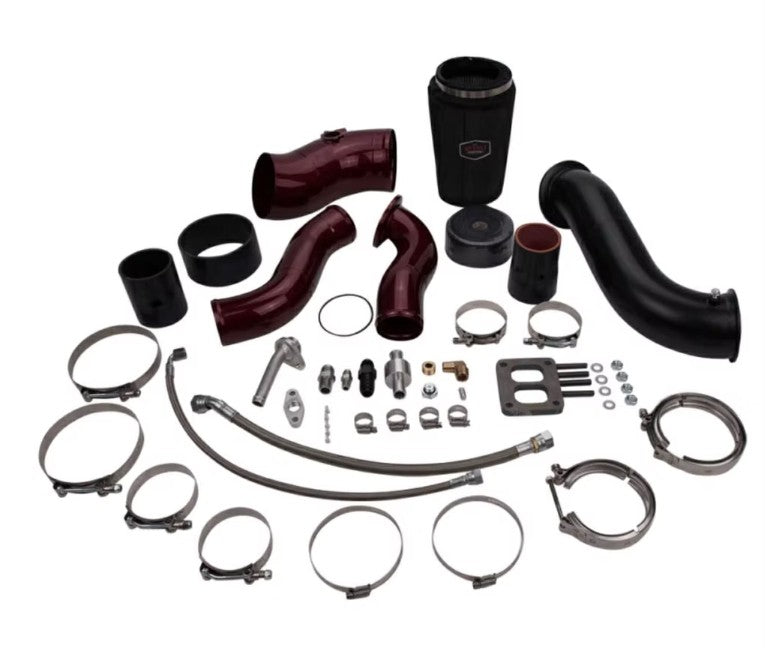

Kit Includes:
-4" Down Pipe (Mates to Exhaust system v-band)
-5" Intake with sensor bungs
-Dry Air Filter
-Outerwear's Pre-Filter Cover
-#6 Stainless Oil Feed Line & Fitting
-#10 Stainless Oil Drain Line & Fittings
-3" Hot Side Intercooler Pipe
-1/2" T4 Spacer plate with hardware
-Coolant Lines and Fittings, (Stand pipe removal fitting)
-Silicone Boots
-T-Bolt Clamps
-Crank Case Breather Kit
-Necessary Hardware
-Powder Coating
Notes:
Designed for use with ATS & Steed Speed Manifolds
Accepts Standard S400 Style Turbochargers
Not Compatible With Race Style Compressor Covers
