Description
The Garrett PowerMax™ Stage 2 turbocharger upgrade for the 2017 – 2020 F-150 and F-150 Raptor platform is engineered to increase engine performance capability while maintaining OEM installation specifications. This direct drop-in Stage 2 upgrade provides 54% more flow than OEM and will support up to 700+ BHP *. Improvements in compressor efficiency and flow can be attributed to the 60mm fully-machined compressor wheel. Turbine flow is increased by 52% compared to OEM with a 50mm Inconel turbine wheel and larger 0.45 A/R turbine housing. This turbocharger kit comes fully assembled, calibrated, and is outline interchangeable with the OE hardware to ensure a perfect fit every time. Contact your local authorized Garrett distributor for additional information.
Garrett is proud to announce the PowerMax 2017 – 2020 Ford F-150, F-150 Raptor | Stage 2 Turbos have received California Air Resources Board (CARB) certification. This certification (EO D-871-1) means our product has been tested in accordance with manufacturer/OEM specifications and meets the emissions standards set by the state of California and is approved for use in all 50 states when used as a drop-in replacement for factory equipment. Garrett remains committed to engineering and manufacturing environmentally responsible products for enthusiasts.
FEATURES & BENEFITS:

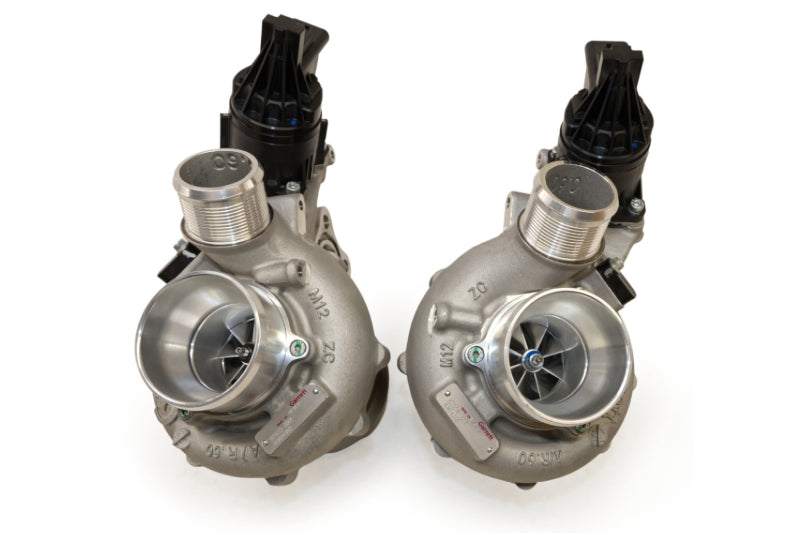

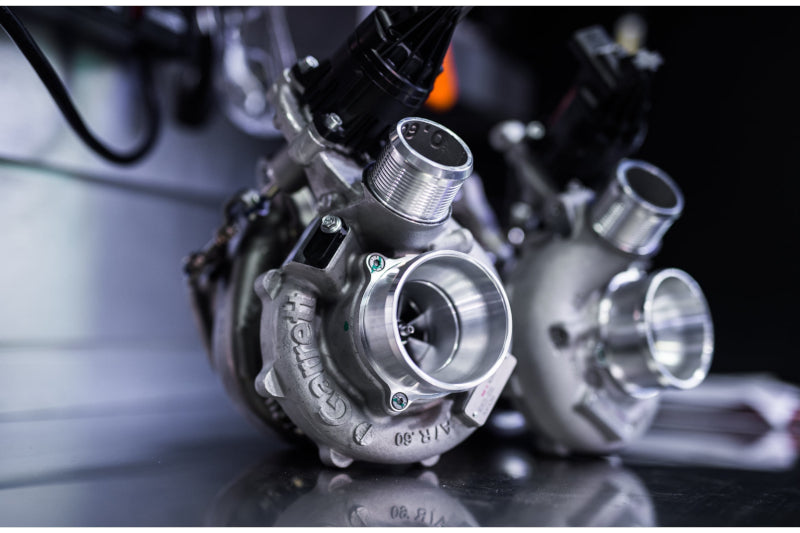

• Direct-fit Stage 2 upgrade (LH & RH Turbos)
• CARB Certified EO: D-871-1 (LH 901654-5001W \ RH 901655-5001W)
• Compressor housing inlet (2.75”) is larger than stock to allow for increased flow and optimized surge port
• Adapter for stock inlet tube included with turbo kit
• Turbo model: GT2260S
• 700+ BHP capability *
• Complete assembly with calibrated electric actuator

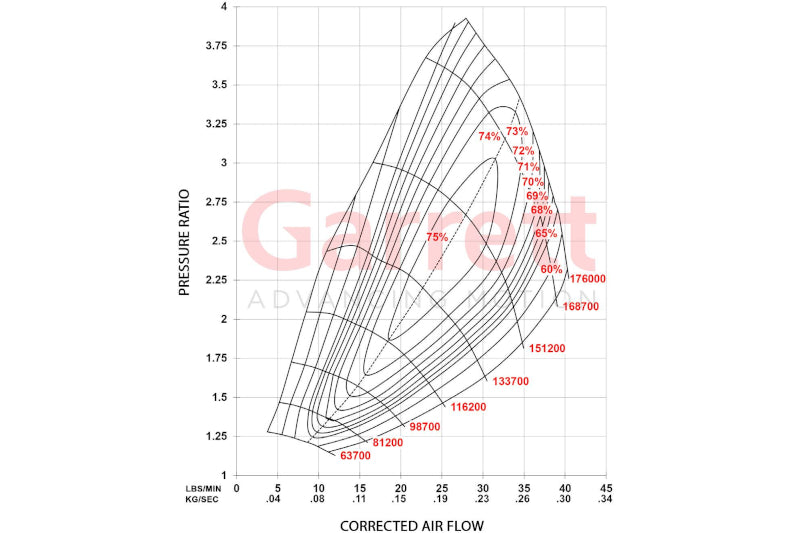

• Billet compressor wheel with 54% increased flow
• Inconel turbine wheel with 52% increased flow
• Modern compressor and turbine wheel aero
• Tuned ported shroud for optimal compressor surge and choke performance
• Speed sensor port: use PN 781328-0003 (street kit) or 781328-0004 (pro kit)
• Journal-bearing rotating group
