Description

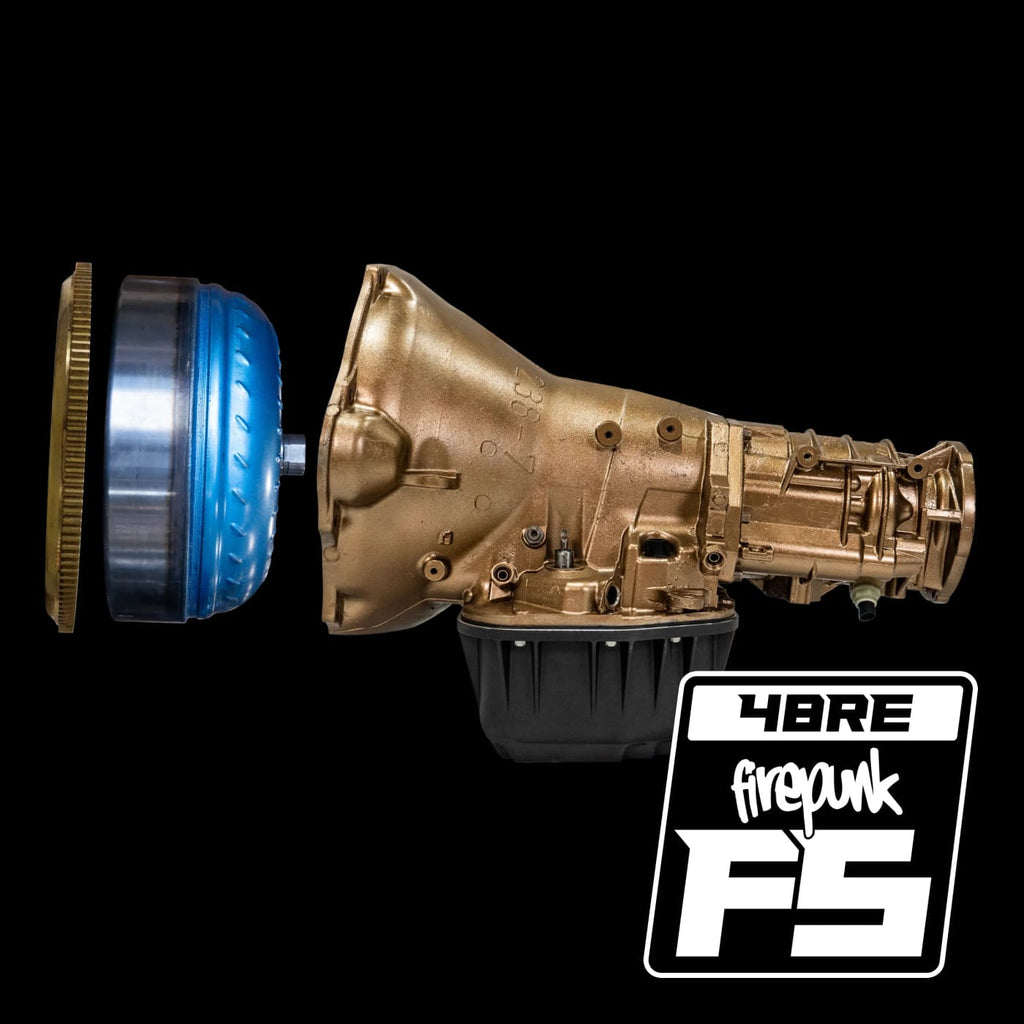

The Firepunk F5 Transmission for your 2004.5-2007 Dodge 5.9L Cummins is
for the ultimate street truck making big power. Suited for a variety of
High Horsepower trucks, this transmission is built using oversized
shafts capable of holding extreme HP and torque.
This is the transmission that was used in both the 1st and 2nd place trucks in the
Diesel Power Challenge 2014 and 2015. This is also the same transmission that won Ultimated Callout Challenge 2016, 2017 and 2018, along with the ones Firepunk Competitors use today!
NOTE:
The transfer case input must be changed to fit the oversized input shaft.
Features:
- Built For High Horsepower Applications 1000HP+
- 2-Year Unlimited Mileage, 100% Workmanship Warranty

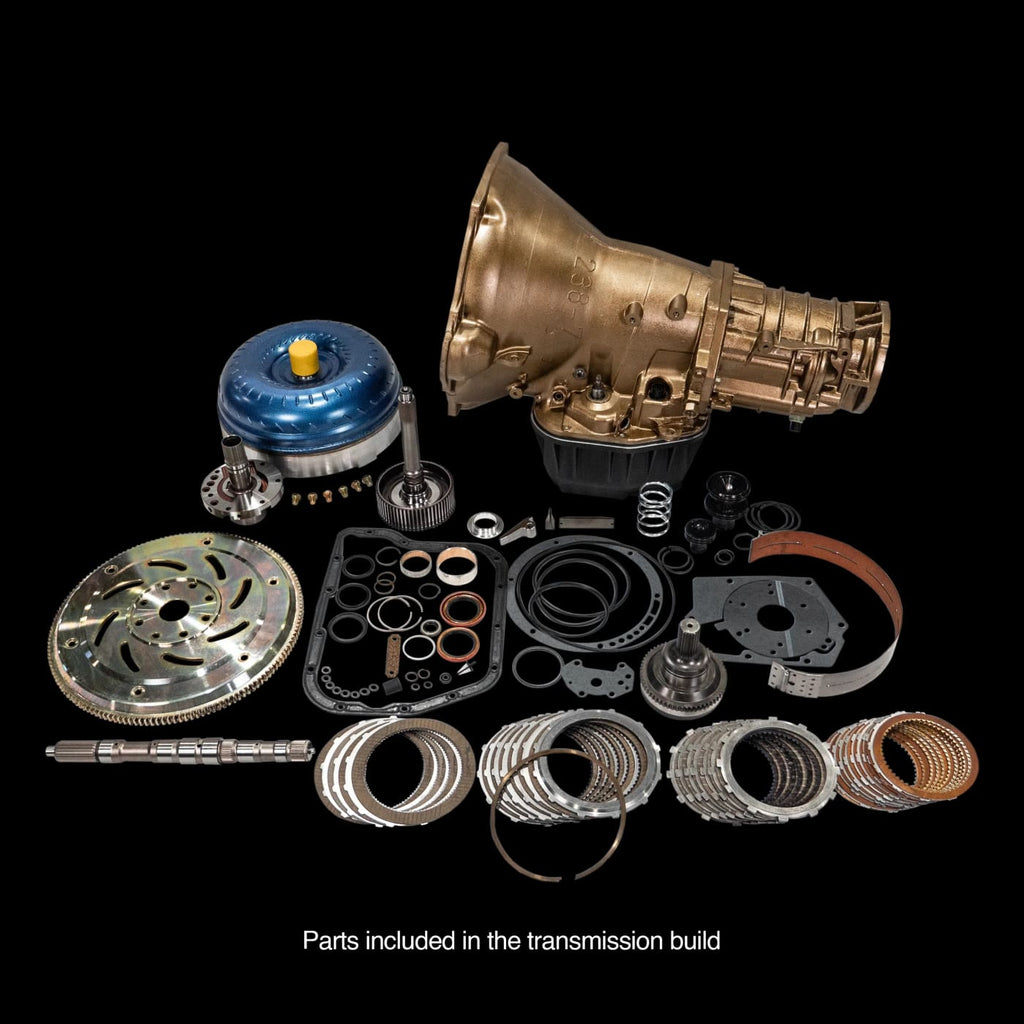

Build List:
- Sonnax 35 Spline Fat Input Shaft
- Sonnax Billet Intermediate Shaft
- Sonnax 29 Spline Billet Output Shaft
- Custom Billet DPC Heavy Duty Triple disc converter (Lifetime Warranty)
- Competition
Master Kit (includes added clutches in Direct drum and in OD Brake. OD
direct clutch modification and oversized HD 2nd gear band) - Billet Double Seal 2nd Gear Servo
- Billet Strut
- Billet Anchor
- Billet Accumulator Piston
- Billet Sonnax Direct Piston
- Billet 4.2 Ratio Apply lever
- Firepunk Built High Pressure Valve Body
- Deep Pan with drain plug + temp sender port
- DPC Billet SFI 29.3 Approved Flexplate
