Description
The Super Duty Starter system is designed for people who want a small suspension lift without the stereotypical ride-quality degradation associated with mass-produced “lift and leveling kits”. The included, custom tuned, Carli Signature Series Shocks are longer to accommodate the extended travel. When designing the shocks, Zinc plating, Clear Coat for corrosion resistance and quality bushings were a must; finished off with boots to protect the shafts, we back them with a limited lifetime warranty to ensure their quality is as unbeatable as their ride quality at this price point.
The truck will sit 2.5” higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. Stainless Brake Lines and an Adjustable Track Bar round off the front end geometry correction while Caster Shims improve on the stock handling. The rear is outfitted with matching custom-tuned Signature Series shocks and is recommended to be optioned with a Progressive Add-a-Pack lifting it 2” and help keep the truck planted over rough terrain while maintaining factory towing and payload capacity. The 2.5” systems are designed to work with trucks equipped with the 2” rear block. Super Duties equipped with a 3-5/8″ tall block from the factory will require the factory 2″ tall Block to achieve a leveled stance.
This system was designed with the Progressive Add-a-Pack and should not be run with the Full Progressive Leaf Springs.

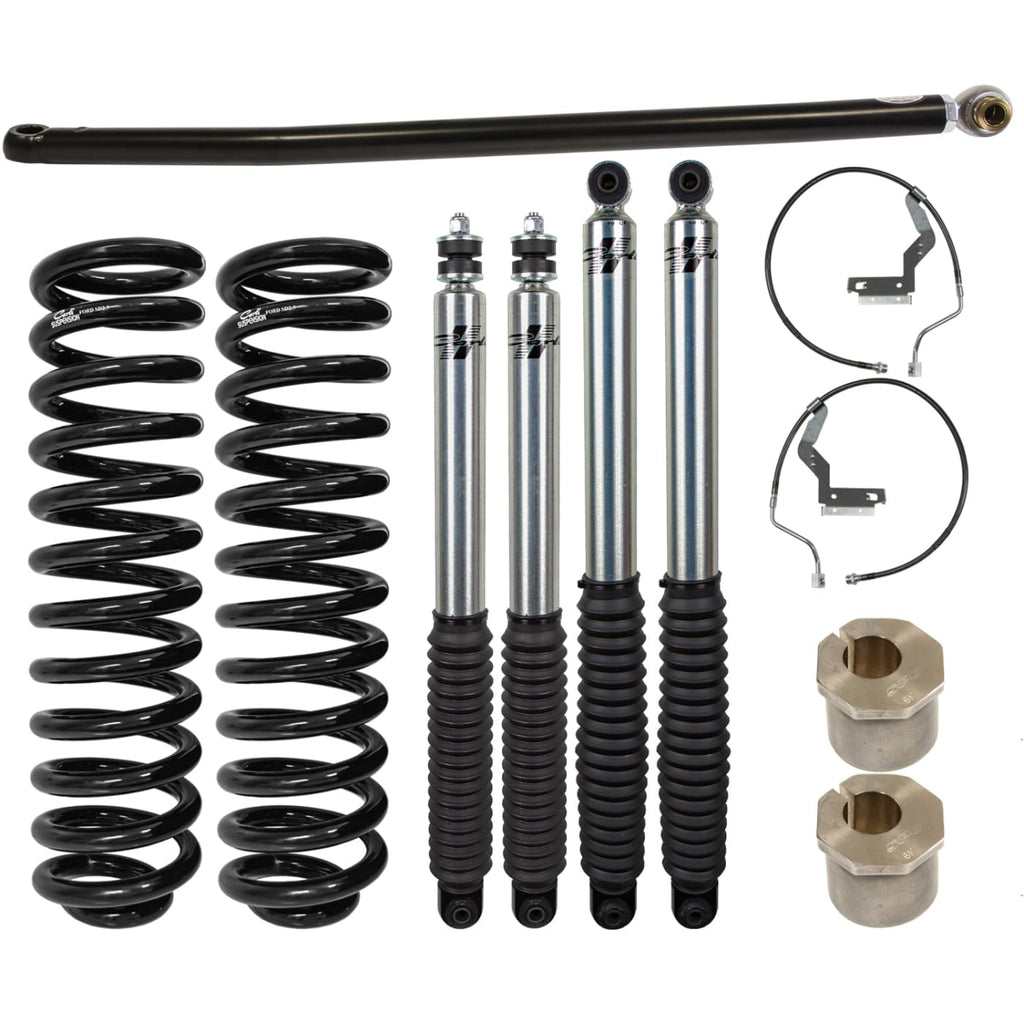

Starter System Includes:
- Front Leveling Coils
- Signature Series Front & Rear Shocks
- Adjustable Track Bar
- Stainless Brake Lines
- 2 Degree Camber Adjusters
ADDITIONAL UPGRADES
Low Mount Steering Stabilizer
The low mount stabilizer features a built in diff guard and heavy duty clamp for a simple installation with supporting anywhere from 2.5-5.5" of lift, the stabilizer shock is custom valved for larger tires with nitrogen pressure to eliminate wander and bump steer in the front end.
Leaf Spring Shackles
Carli's rear shackle kit is constructed of 1/4" american cold rolled steel with a mid frame gusset designed to eliminate deflection with upgraded bushings that allow for more movement resulting in a much smoother ride over the factory bushings.
Features & Benefits:
- Superior Ride Quality & Performance
- Lighter Rate Coil Springs
- American Cold Rolled Steel
- Premium Quality Joints & Bushings
- Zinc Plated & Clear Coated Signature Shocks
- Fits The 2005-2016 Ford F250-F350 Superduty
