The Merchant Automotive Deluxe Bearing and Seal kit for the NP263XHD includes all the bearings and seals throughout the transfer case as well as low range shift fork pads and wear pads for the planetary gearset. If you are wanting to completely refresh your transfer case after any kind of no fluid situation like a pump rub leak or seal leak this is the kit for you.

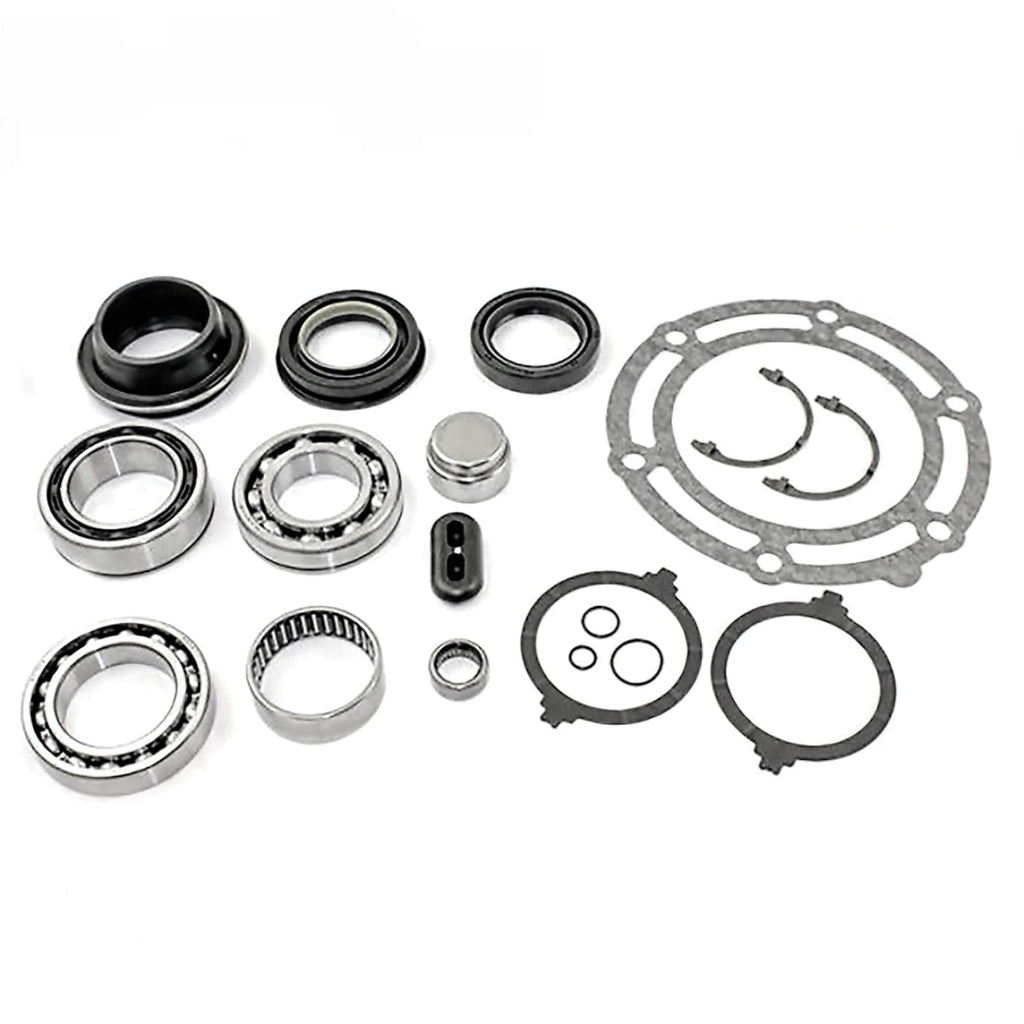

Kit Contents:
- A23 Speed Sensor Seal
- A13 Rear Output Seal
- Transfer Case Gasket
- Snap Ring Hole Grommet
- B25 Rear Output Shaft Bearing
- A7 Front Transfer Case Output Seal
- A9 Front Transfer Case Input Seal
- B18 Front Output Shaft Bearing
- B22 Front Transfer Case Bearing
- A17 Shift Fork Pad - Pair
- B12 Planetary Thrust Washer
- A33 Selector Shaft Bearing
- B11 Input Gear Bearing
- B8 Front Input Bearing
- Selector Shaft Sensor, Detent Plug O-Ring
- B30 XHD HD Transfer Case Pickup Tube Seal, 49-Spline Pump
